Electric Load Sensor: Service and Repair

ELD Replacement

1. Remove the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal And Installation (USA Models).

2. Remove the fuse (A).

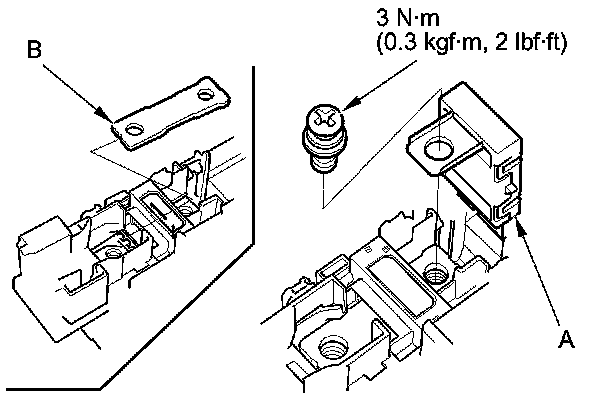

3. Remove the joint bar (B).

4. Turn over the under-dash fuse/relay box, then remove the ELD (A).





5. Install the parts in the reverse order of removal.
