Humidity Sensor Test

  1. Remove the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
  2. Connect the humidity/in-car temperature sensor 4P connector.
  3. Turn the ignition switch to ON (II). Measure the voltage between the terminals with the (+) probe on terminal No. 3 and the (-) probe on terminal No. 2 with the connector connected.

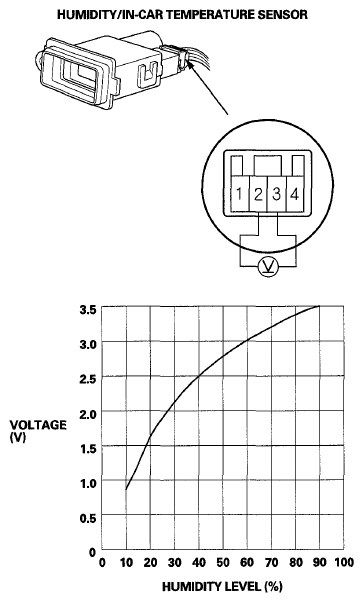

    Fig 1: Measuring Voltage Between Humidity/In-Car Temperature Sensor 4P Connector Terminal 3 And 2
    G06431349Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the voltage is not as specified, replace the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
