Battery Module Removal/Installation

IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precautions before doing repairs or service (see SERVICE PRECAUTIONS  ).

1. Make sure the ignition switch is in LOCK (0).
2. Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
3. Remove the IPU case (see IPU CASE REMOVAL/INSTALLATION  ).

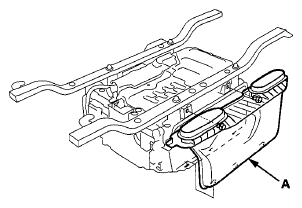

4. Remove the IPU module front air duct (A).
   Fig 1: Identifying IPU Module Front Air Duct

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

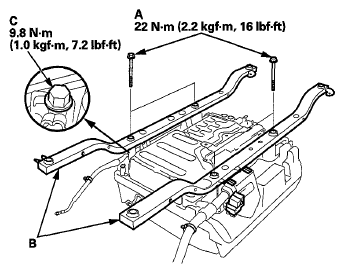

5. Remove the bolts (A), IPU frames (B), and the ground bolt (C).
   Fig 2: Bolts With Torque Specifications, IPU Frames, And Ground Bolt

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

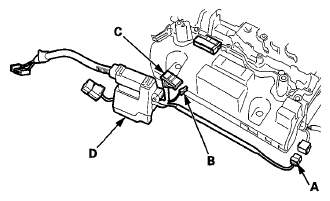

6. Disconnect the connectors (A, B, C).
   Fig 3: Identifying IPU Connectors

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

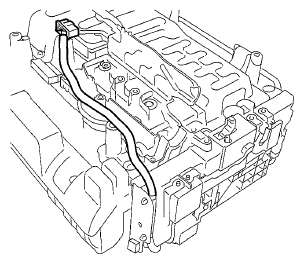

7. Remove the IPU wire harness (D).
8. Disconnect MCM connector (A).
   Fig 4: Identifying MCM Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

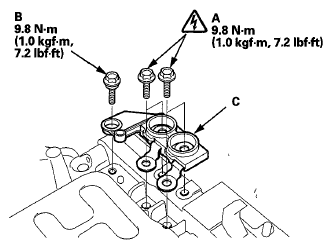

9. Remove the bolts (A, B) and the PCU busplate (C).
   Fig 5: Bolts With Torque Specifications And PCU Busplate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

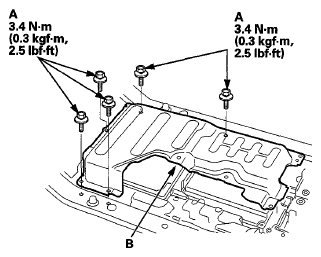

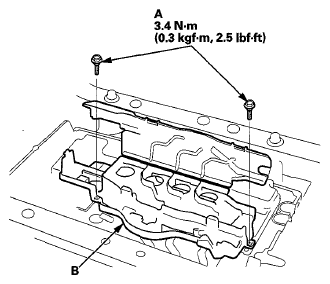

10. Remove the bolts (A) and the PCU cover (B).
    Fig 6: Bolts With Torque Specifications And PCU Cover

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

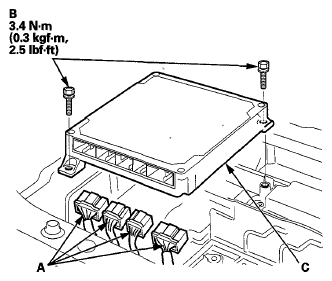

11. Disconnect the MCM connectors (A).
    Fig 7: Bolts With Torque Specifications, MCM And Connectors

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Remove the bolts (B) and the MCM (C).
13. Remove the bolts (A) and the terminal cover (B).
    Fig 8: Bolts With Torque Specifications And Terminal Cover

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

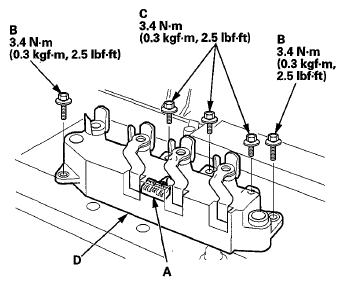

14. Disconnect the phase motor current sensor connector (A).
    Fig 9: Bolts With Torque Specifications And Phase Motor Current Sensor Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Remove the bolts (B, C) and the phase motor current sensor (D).

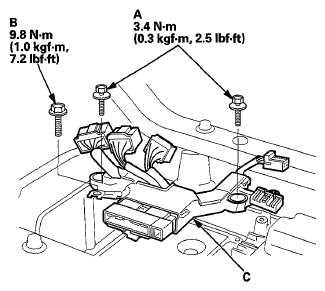

16. Remove the bolts (A, B) and the PCU wire harness (C).
    Fig 10: Bolts With Torque Specifications And PCU Wire Harness

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

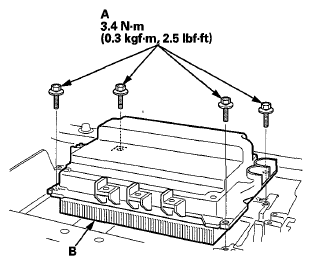

17. Remove the bolts (A) and the MPI module (B).
    Fig 11: Bolts With Torque Specifications And MPI Module

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Install the parts in the reverse order of removal,
19. Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
