IPU Module Fan Replacement

  1. Remove the right cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREAS ).
  2. Disconnect the IPU module fan connector (A).

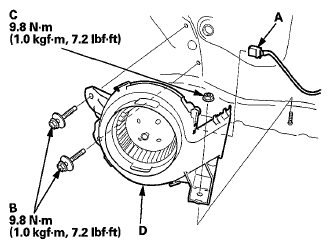

    Fig 1: Bolt and Nut With Torque Specifications, IPU Module Fan And Connector
    G06429973Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B), the nut (C), and the IPU module fan (D).
  4. Install the parts in the reverse order of removal.
