Ignition Switch Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

1. Do the 12 volt battery terminal disconnection procedure, (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
2. Remove the steering column covers (see GLOVE BOX STRIKER REPLACEMENT ).
3. Disconnect the 7P connector (A) from the ignition switch (B).

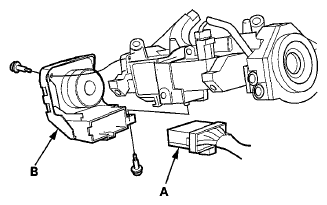

   Fig 1: Identifying 7P Connector And Ignition Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the two screws and the ignition switch.
5. Install the parts in the reverse order of removal.
6. Do the 12 volt battery terminal reconnection procedure, (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
