Front Passenger's Power Window Motor Test

Remove the front passenger's power window switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the passenger's power window switch 8P connector according to the table.

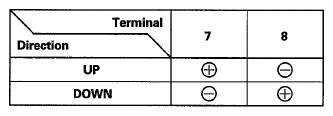

Fig 1: Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

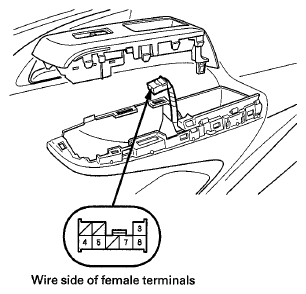

Fig 2: Identifying Passenger's Power Window Switch 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test (see POWER WINDOW MASTER SWITCH INPUT TEST ).
Disconnect the 2P connector (A) from the front passenger's power window motor (B).

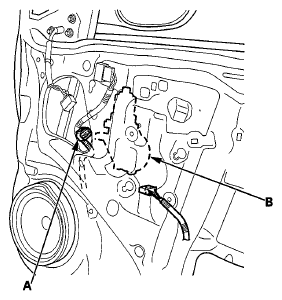

Fig 3: Identifying 2P Connector And Front Passenger's Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between the front passenger's power window switch 8P connector terminals and the front passenger's power window motor 2P connector terminals as shown. There should be continuity.

CONTINUITY CHART

Front passenger's power window switch 8P connector	Front passenger's power window motor 2P connector
7	1
8	2

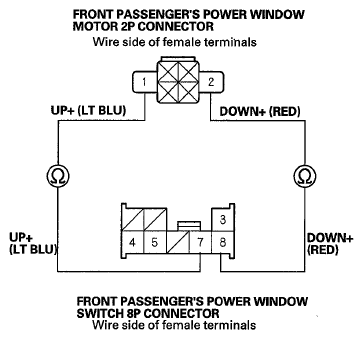

Fig 4: Checking Continuity Between Front Passenger's Power Window Switch 8P Connector Terminals And Front Passenger's Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the wire harness is OK, replace the front passenger's power window motor (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
