Power Window Master Switch Replacement
- Remove the armrest trim (see
FRONT DOOR PANEL REMOVAL/INSTALLATION
).
- Remove the switch panel from the door panel.

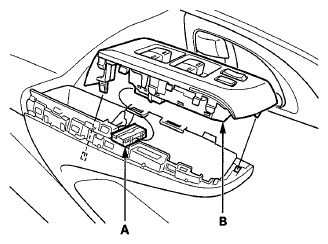

- Disconnect the 22P connector (A) from the power window master switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the four screws and the switch (A).
- Install the switch in the reverse order of removal.
- After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
