Creep Aid System (CAS) Features
This system prevents the vehicle from rolling forward or backward on a hill during which the driver releases the brake pedal by controlling the brake pressure.

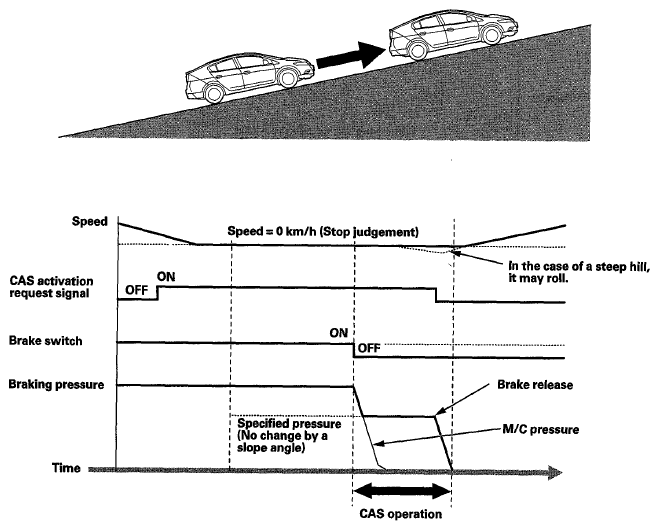

When the ABS modulator control unit receives a CAS activation request signal from the PCM, the system assists the driver to get the vehicle started by holding the brake pressure. This control is done not only on hills, but also on level roads. When the driver lifts his foot off the brake pedal to get the vehicle started, the brake switch is turned off, and then the brake pressure is held by operating the TCS valve and the CAS valve.
