Wheel Speed Sensor Replacement: Rear
- Turn the ignition switch to LOCK (0).
- Remove the rear wheels.

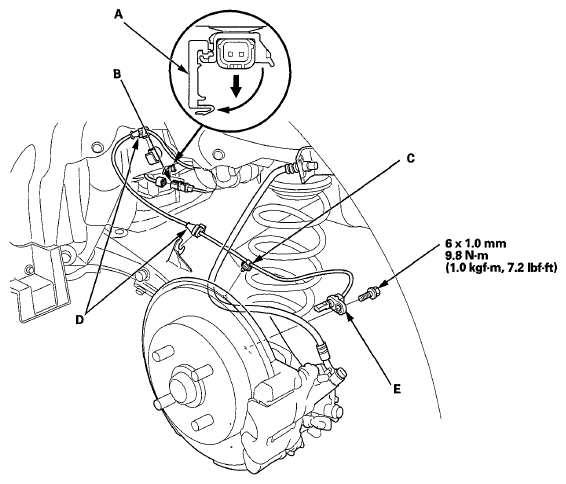

- Release the connector holding clamps (A), then disconnect the wheel sensor connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the clip (C) and the grommets (D).
- Remove the bolt and the wheel speed sensor (E).
- Install the wheel speed sensor in the reverse order of removal, and note these items:
- Do not twist the sensor wires.
- If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
- Make sure the grommet is installed properly.
- Make sure there is no debris in the sensor mounting hole.
- Start the engine, and make sure the ABS indicator go off.
- Test-drive the vehicle, and make sure the ABS indicator do not come on.
