Connector to Fuse/Relay Box Index

Battery Terminal Fuse Box

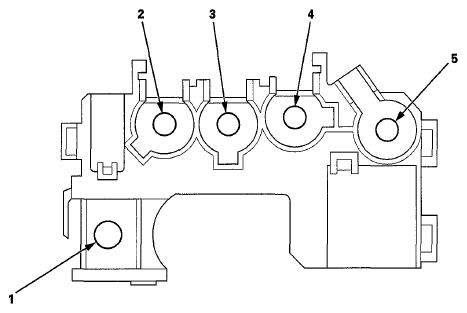

Fig 1: Identifying Battery Terminal Fuse Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

BATTERY TERMINAL FUSE BOX SPECIFICATIONS

Socket	Ref	Terminal	Connects to
T-1.	1	-	Battery terminal, Starter
T-2	2	-	DC-DC converter cable (included in the IMA motor power cable)
T-3	3	-	Left engine compartment wire harness
T-4	4	-	Left engine compartment wire harness
T-5	5	-	Left engine compartment wire harness

Under-Dash Fuse/Relay Box

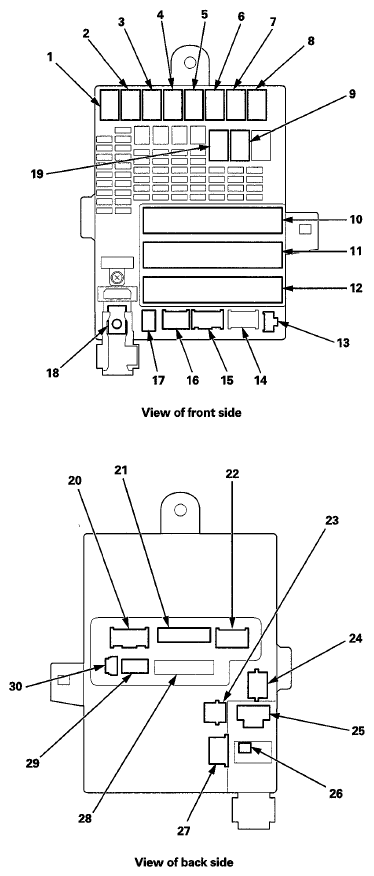

Fig 2: Identifying Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

UNDER-DASH FUSE/RELAY BOX SPECIFICATIONS

Socket	Ref	Terminals	Connects to
A	10	36	Right engine compartment wire harness
A/F sensor relay	3	4
B	11	36	Left engine compartment wire harness
Blower motor relay	2	4
C	12	49	Driver's side wire harness
Driver's door unlock relay	19	5
E	17	12	Driver's door wire harness
Electronic throttle control system (ETCS) control relay	7	4
F	16	6	Driver's door wire harness
G	15	8	Roof wire harness
H (optional connector)	14	8	Not used
Ignition coil relay	5	4
J (MICU service check connector)	13	3
K	20	10	Dashboard wire harness
Lighting relay	4	4
M	21	34	Dashboard wire harness
N	22	8	Dashboard wire harness
P (SRS)	30	4	Dashboard wire harness
PGM-FI main relay 1 (Fl MAIN)	6	4
Power window relay (P/W)	1	4
Q	29	16	Dashboard wire harness
R	28	-	Not used
Rear window defogger relay	8	4
S	24	3	Dashboard wire harness
Starter cut relay (ST CUT)	9	4
T	25	2	Dashboard wire harness
W	23	1	Dashboard wire harness
X	27	3	Dashboard wire harness
Y (Electrical load detector)	26	3	Dashboard wire harness
T-9	18	-	Left engine compartment wire harness

Auxiliary Under-Hood Fuse/Relay Box

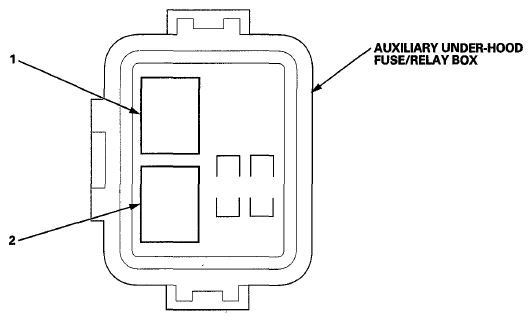

Fig 3: Identifying Auxiliary Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUXILIARY UNDER-HOOD FUSE/RELAY BOX SPECIFICATIONS

Socket	Ref	Terminals	Connects to
Fan control relay	1	5	Left engine compartment wire harness
PGM-FI main relay 2	2	4	Left engine compartment wire harness

Auxiliary Under-Hood Relay Box

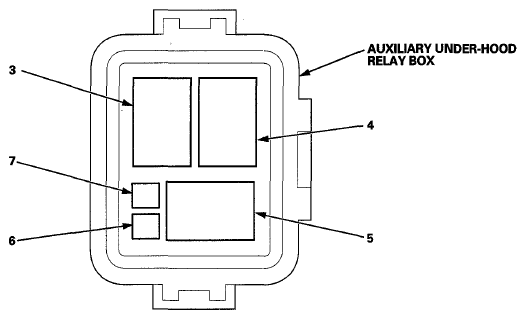

Fig 4: Identifying Auxiliary Under-Hood Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUXILIARY UNDER-HOOD RELAY BOX SPECIFICATIONS

Socket	Ref	Terminals	Connects to
A/C condenser fan relay	3	4	Left engine compartment wire harness
Radiator fan relay	4	4	Left engine compartment wire harness
A/C compressor clutch relay	5	4	Left engine compartment wire harness
A/C diode A	6	2	Left engine compartment wire harness
A/C diode B	7	2	Left engine compartment wire harness

Under-Dash Relay Holder

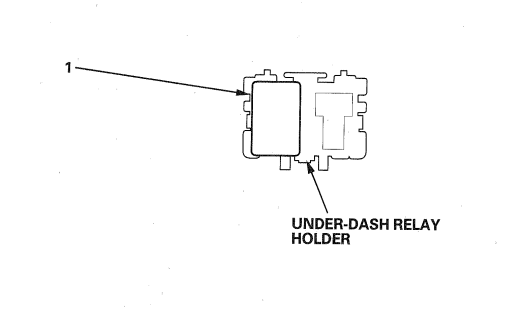

Fig 5: Identifying Under-Dash Relay Holder

Courtesy of AMERICAN HONDA MOTOR CO., INC.

UNDER-DASH RELAY HOLDER SPECIFICATIONS

Socket	Ref	Terminal	Connect to
Hatch release actuator relay	1	5	Dashboard wire harness

IPU Relay Holder

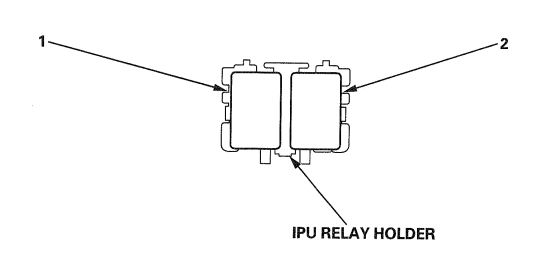

Fig 6: Identifying IPU Relay Holder

Courtesy of AMERICAN HONDA MOTOR CO., INC.

IPU RELAY HOLDER SPECIFICATIONS

Socket	Ref	Terminal	Connects to
Motor control module (MCM) relay 1	1	4	IPU wire harness
Motor control module (MCM) relay 2	2	4	IPU wire harness
