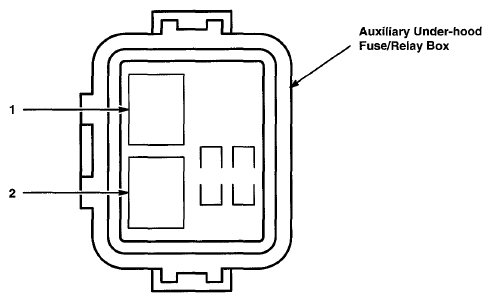

Connector-to-Fuse/Relay Box Index
| Ref | Socket | Cavities | Connects to | Notes |
|---|---|---|---|---|
| 1 | Fan Control Relay | 5 | Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| 2 | PGM-FI Main Relay 2 | 4 | Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) |
