Connector-to-Terminal Index

Ref Socket Cavities Connects to Notes
1 T1 - Starter Cable (see CONNECTOR TO HARNESS INDEX )
2 T2 - IMA Motor Power Cable (DC-DC Converter Cable) (see IMA MOTOR POWER CABLE (ENGINE COMPARTMENT BRANCH) )
3 T3 - Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )
4 T4 - Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )
5 T5 - Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )

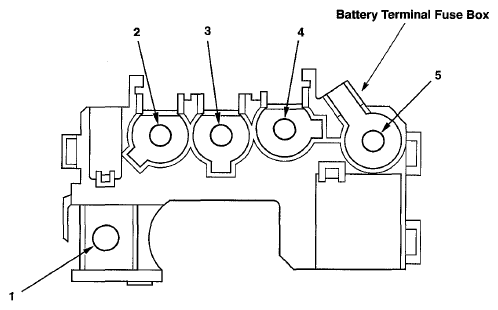

Fig 1: Battery Terminal Fuse Box (With Socket) (6-8)
G07757087
