Fuse-to-Components Index

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
1	-	100A	POWER DISTRIBUTION	DC-DC Converter, Driver's Door Unlock Relay, ELD Unit, Fuses 1, 2, 3, 4, 9, 25, 26, 27, 28, 29, 30, 33, 37, 39, 40, 41, 42, 43, 45, 46, 47, 52, 53, 57, 58, 59, and Multi-fuse 60 in Under-dash Fuse/Relay Box, Headlight Low Beam Relay, Power Window Relay
2	-	60A	POWER DISTRIBUTION	EPS Control Unit
3	-	20A	POWER DISTRIBUTION	Fuses 23 and 24 in Under-dash Fuse/Relay Box

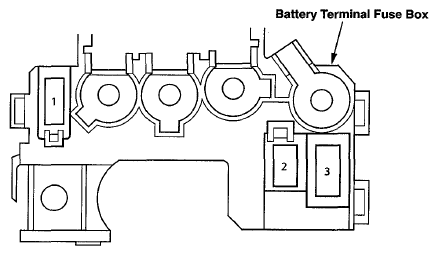

Fig 1: Battery Terminal Fuse Box (6-8)
