Connector-to-Fuse/Relay Box Index

Ref	Socket	Cavities	Connects to
1	Power Window Relay	4
2	Blower Motor Relay	4
3	A/F Sensor Relay	4
4	Headlight Low Beam Relay	4
5	I Ignition Coil Relay	4
6	PGM-FI Main Relay 1	4
7	ETCS Control Relay	4
8	Rear Window Defogger Relay	4
9	Starter Cut Relay	4
10	Not Used	4
11	A	36	Right Engine Compartment Wire Harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) )
12	B	36	Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) )
13	C	49	Driver's Side Wire Harness (see DRIVER'S SIDE WIRE HARNESS )
14	J (MICU Service Check Connector)	3
15	H (Option Connector)	8
16	G	8	Roof Wire Harness (see ROOF WIRE HARNESS )
17	F	6	Driver's Door Wire Harness (see DRIVER'S DOOR WIRE HARNESS )
18	E	12	Driver's Door Wire Harness (see DRIVER'S DOOR WIRE HARNESS )
19	T9	-	Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) )
20	Driver's Door Unlock Relay	5
21	K	10	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
22	M	34	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
23	N	8	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
24	W	1	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
25	S	3	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
26	T	2	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
27	Y (ELD Unit)	3	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
28	X	3	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
29	R	28	Not Used
30	Q	16	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
31	P	4	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )

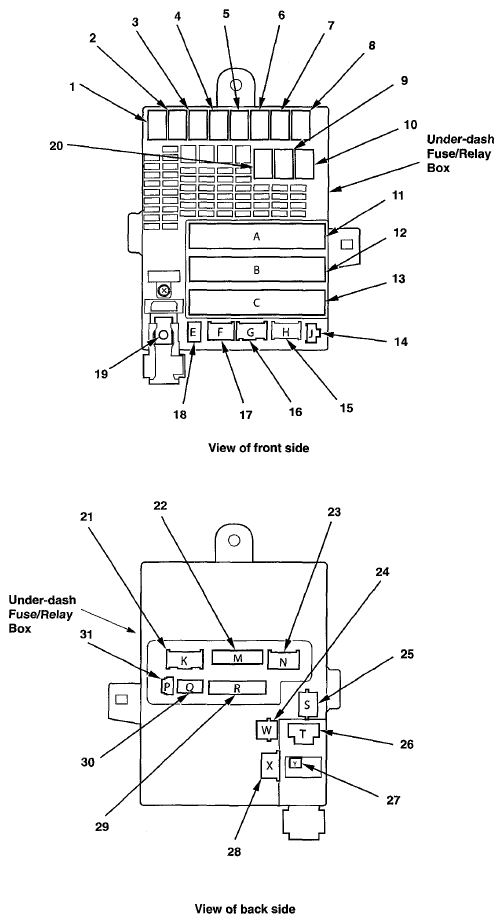

Fig 1: Under-Dash Fuse/Relay Box (6-7)
