Fuse-to-Components Index

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected	Notes
1	BACK UP	15A	POWER DISTRIBUTION , POWER DISTRIBUTION	Audio Unit (without Navigation), Audio-Navigation Unit (Navigation), Cargo Area Light, Ceiling Light, DLC, Gauge Control Module, HandsFreeLink Control Unit (Navigation), Immobilizer-Keyless Control Unit, Individual Map Lights (Individual Map Lights), MCM, MICU
2	TPMS	(7.5A)	POWER DISTRIBUTION	MICU, TPMS Control Unit	TPMS
3	P/W DR	20A	POWER DISTRIBUTION	Power Window Master Switch
4	-	10A	POWER DISTRIBUTION	Honda Accessory
5	BACK UP LIGHT	10A	POWER DISTRIBUTION	MICU
6	SRS	10A	POWER DISTRIBUTION	MICU, SRS Unit
7	TRNS SOL	10A	POWER DISTRIBUTION	PCM
8	SRS	7.5A	POWER DISTRIBUTION	Front Passenger's Airbag Cut-off Indicator, MICU, ODS Unit, SRS Unit
9	-	-	POWER DISTRIBUTION	Not Used
10	A/C	7.5A	POWER DISTRIBUTION	A/C Compressor Clutch Relay, Blower Motor Relay, Climate Control Unit, Fan Control Relay, MICU, Power Mirror Switch, Radiator Fan Relay, Radiator Fan Relay Diode, Rear Window Defogger Relay, Recirculation Control Motor
11	ABS/VSA	7.5A	POWER DISTRIBUTION	ABS Modulator-Control Unit (ABS), EPS Control Unit, MICU, VSA Modulator-Control Unit (VSA), Yaw Rate-Lateral Acceleration Sensor (VSA)
12	IG IMA	10A	POWER DISTRIBUTION	DC-DC Converter, EVAP Canister Purge Valve, Idle Stop Switch, MAF/IAT Sensor, MICU, Secondary HO2S
13	ACC SOCKET	20A	POWER DISTRIBUTION	Accessory Power Socket, MICU
14	RADIO	7.5A	POWER DISTRIBUTION	Audio Unit (without Navigation), Audio-Navigation Unit (Navigation), HandsFreeLink Control Unit (Navigation), MICU, Steering Lock Assembly
15	DAY LIGHT	7.5A	POWER DISTRIBUTION	MICU
16	RR WIPER	10A	POWER DISTRIBUTION	MICU, Rear Window Wiper Motor
17	P/W AS	20A	POWER DISTRIBUTION	Front Passenger's Power Window Switch, MICU, Power Window Master Switch
18	P/W RR R	20A	POWER DISTRIBUTION , POWER DISTRIBUTION	Power Window Master Switch, Right Rear Power Window Switch
19	P/W RR L	20A	POWER DISTRIBUTION	Power Window Master Switch, Left Rear Power Window Switch
20	FUEL PUMP	15A	POWER DISTRIBUTION	Immobilizer-Keyless Control Unit, MICU, PCM, PGM-FI Main Relay 2
21	WASHER	15A	POWER DISTRIBUTION	MICU
22	METER	7.5A	POWER DISTRIBUTION	ELD Unit, Gauge Control Module, MCM, MICU, Shift Lock Solenoid, TPMS Control Unit (TPMS)
23	HAZARD	10A	POWER DISTRIBUTION	Hazard Warning Switch, MICU
24	STOP/HORN	10A	POWER DISTRIBUTION	Brake Pedal Position Switch, MICU
25	-	-	POWER DISTRIBUTION	Not Used
26	LAF	10A	POWER DISTRIBUTION	A/F Sensor, A/F Sensor Relay, EVAP Canister Vent Shut Valve, PCM

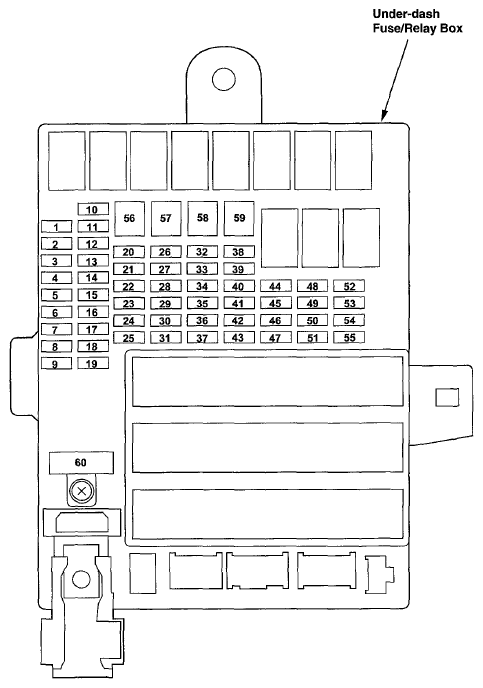

Fig 1: Under-Dash Fuse/Relay Box (6-1)

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
27	DOOR LOCK	30A	POWER DISTRIBUTION , POWER DISTRIBUTION	Door Lock Relay, Door Unlock Relay, MICU
28	HEAD LIGHT	20A	POWER DISTRIBUTION	High Beam Control Circuits, MICU
29	SMALL LIGHT	10A	POWER DISTRIBUTION	MICU, Taillight Relay
30	MAIN FAN MTR	30A	POWER DISTRIBUTION	Radiator Fan Relay
31	IGPS	7.5A	POWER DISTRIBUTION	A/C Condenser Fan Diode, A/C Condenser Fan Relay
32	H/L LO R	10A	POWER DISTRIBUTION	Right Headlight (Low)
33	IG COIL	20A	POWER DISTRIBUTION	Ignition Coil Relay
34	H/L LO L	10A	POWER DISTRIBUTION	Fog Light Connector 1 (Option Connector), Left Headlight (Low)
35	DOOR LOCK	15A	POWER DISTRIBUTION	Front Passenger's Door Lock Actuator/Knob Switch, MICU, Right Rear Door Lock Actuator/Knob Switch
36	DOOR LOCK	15A	POWER DISTRIBUTION	Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch, Left Rear Door Lock Actuator/Knob Switch
37	ABS/VSA F/S	30A	POWER DISTRIBUTION	ABS Modulator-Control Unit (ABS), VSA Modulator-Control Unit (VSA)
38	DOOR LOCK	15A	POWER DISTRIBUTION	Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch
39	IGP	15A	POWER DISTRIBUTION	PGM-FI Main Relay 1
40	-	-	POWER DISTRIBUTION	Not Used
41	-	-	POWER DISTRIBUTION	Not Used
42	1MA1	10A	POWER DISTRIBUTION	MCM Relay 1
43	MG CLUTCH	7.5A	POWER DISTRIBUTION	A/C Compressor Clutch Relay
44	STS	7.5A	POWER DISTRIBUTION	PCM, Starter Cut Relay
45	TAILGATE LOCK	7.5A	POWER DISTRIBUTION	Hatch Release Actuator Relay
46	-	-	POWER DISTRIBUTION	Not Used
47	SUB FAN MTR	30A	POWER DISTRIBUTION	A/C Condenser Fan Relay
48	H/L HI L	10A	POWER DISTRIBUTION	Fog Light Connector 1 (Option Connector), Left Headlight (High)
49	DOOR LOCK	15A	POWER DISTRIBUTION , POWER DISTRIBUTION	Front Passenger's Door Lock Actuator/Knob Switch, MICU, Right Rear Door Lock Actuator/Knob Switch
50	DOOR LOCK	15A	POWER DISTRIBUTION	Left Rear Door Lock Actuator/Knob Switch
51	H/L HI R	10A	POWER DISTRIBUTION	Right Headlight (High)
52	DBW	15A	POWER DISTRIBUTION	ETCS Control Relay
53	IMA2	10A	POWER DISTRIBUTION	MCM Relay 2

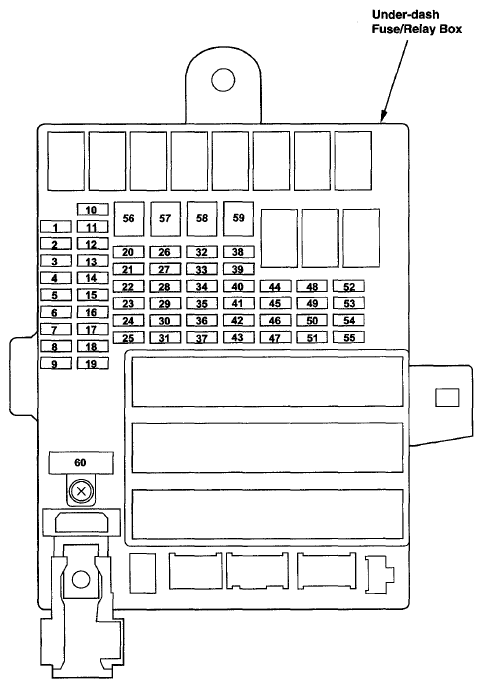

Fig 2: Under-Dash Fuse/Relay Box (6-3)

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected	Notes
54	-	-	POWER DISTRIBUTION	Not Used
55	HEATED MIRROR	10A	POWER DISTRIBUTION	Left Power Mirror, MICU, Right Power Mirror	Power Mirror Defoggers
56	FR WIPER	30A	POWER DISTRIBUTION	MICU
57	BLOWER MTR	30A	POWER DISTRIBUTION	Blower Motor Relay
58	ABS/VSA MTR	30A	POWER DISTRIBUTION	ABS Modulator-Control Unit (ABS), VSA Modulator-Control Unit (VSA)
59	RR DEF	30A	POWER DISTRIBUTION	Rear Window Defogger Relay	without Power Mirror Defoggers
59	RR DEF	40A	POWER DISTRIBUTION	Rear Window Defogger Relay	Power Mirror Defoggers
60	IG MAIN	50A	POWER DISTRIBUTION	Ignition Switch
60	OP MAIN	30A	POWER DISTRIBUTION	Not Used

Fig 3: Under-Dash Fuse/Relay Box (6-5)
