Relays And Control Unit Locations: Dashboard

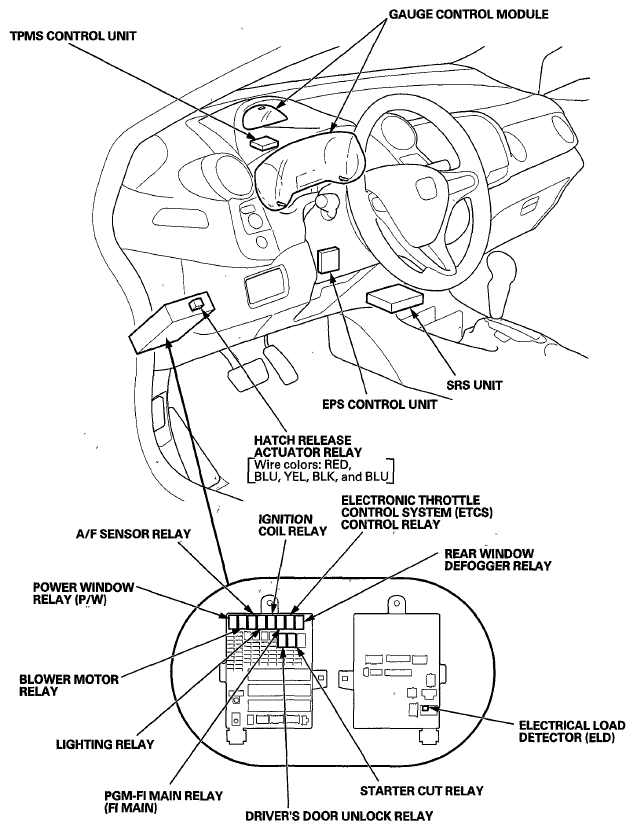

Fig 1: Relay And Control Unit Location - Dashboard (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

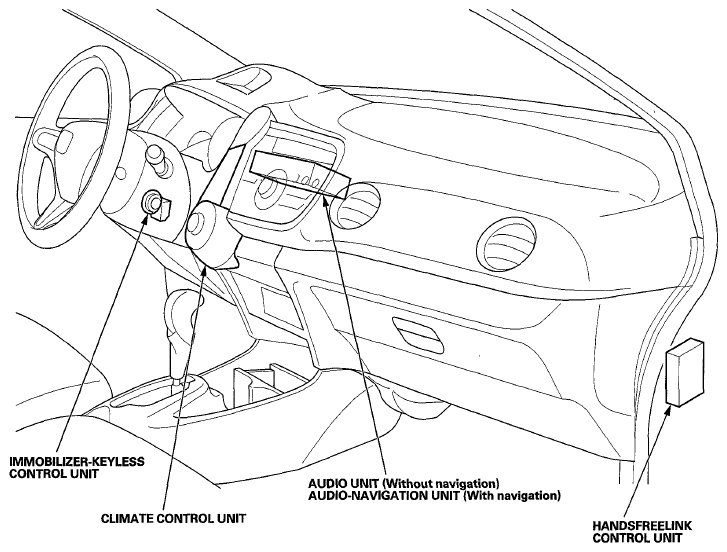

Fig 2: Relay And Control Unit Location - Dashboard (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
