Starter Overhaul: Disassembly/Reassembly

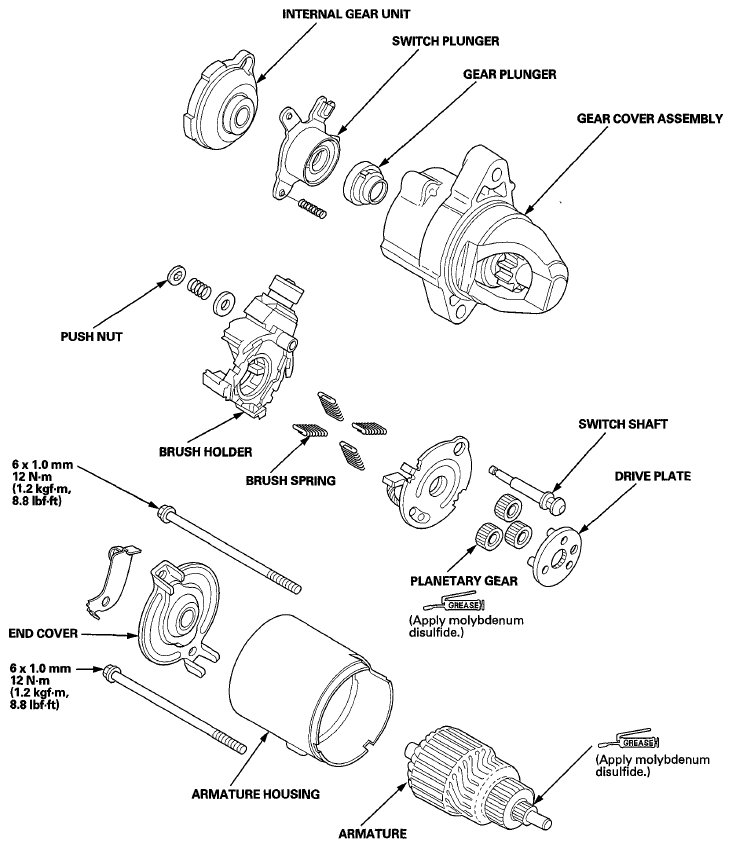

Fig 1: Exploded View Of Starter With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Armature Inspection and Test

1. Remove the starter (see STARTER REMOVAL AND INSTALLATION  ).
2. Disassemble the starter as shown in the Exploded View.
3. Inspect the armature for wear or damage from contact with the permanent magnet. If there is wear or damage, replace the armature.
   Fig 2: Identifying Armature

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check the commutator (A) surface. If the surface is dirty or burnt, resurface with emery cloth or a lathe to the specification in step 5, or recondition with #500 or #600 sandpaper (B).
   Fig 3: Checking Commutator Surface

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check the commutator diameter. If the diameter is below the service limit, replace the armature.

   Commutator Diameter

   Standard (New): 28.0-28.1 mm (1.102-1.106 in)

   Service Limit: 27.5 mm (1.083 in)

   Fig 4: Checking Commutator Diameter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Measure the commutator (A) runout.
   • If the commutator runout is within the service limit, check the commutator for carbon dust or brass chips between the segments.
   • If the commutator runout is not within the service limit, replace the armature.

   Commutator Runout

   Standard (New): 0.02 mm (0.001 in) max.

   Service Limit: 0.05 mm (0.002 in)

   Fig 5: Measuring Commutator Runout

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Use a digital caliper or dial caliper to check the mica depth (A). If the mica depth is below the service limit, replace the armature.

   Commutator Mica Depth

   Standard (New): 0.40-0.50 mm (0.016-0.020 in)

   Service Limit: 0.15 mm (0.006 in)

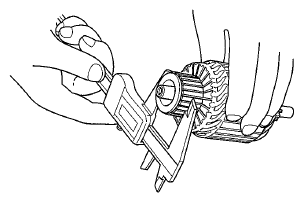

   Fig 6: Identifying Commutator Mica Depth

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Use an ohmmeter to check for continuity between the segments of the commutator. If there is an open circuit between any of the segments, replace the armature.

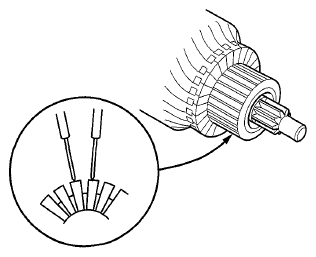

   Fig 7: Checking Continuity Between Segments Of Commutator

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Place the armature (A) on an armature tester (B). Hold a hacksaw blade (C) on the armature core. If the blade is attracted to the core or vibrates while the core is turned, the armature is shorted. Replace the armature.

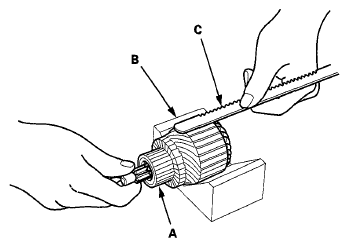

   Fig 8: Holding Hacksaw Blade On Armature Core

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Use an ohmmeter to check for continuity between the commutator (A) and armature coil core (B), and between the commutator and armature shaft (C). If there is continuity, replace the armature.

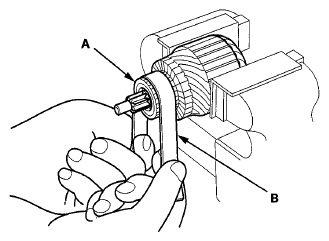

    Fig 9: Checking Continuity Between Commutator And Armature Coil Core

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Starter Brush Inspection

11. Measure the brush length. If it is not within the service limit, replace the brush holder assembly.

    Brush Length

    Standard (New): 11.1-11.5 mm (0.44-0.45 in)

    Service Limit: 4.3 mm (0.17 in)

    Fig 10: Identifying Brush Length

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Starter Brush Holder Test

12. Check for continuity between the (+) brushes (A) and (-) brushes (B). If there is continuity, replace the brush holder assembly.

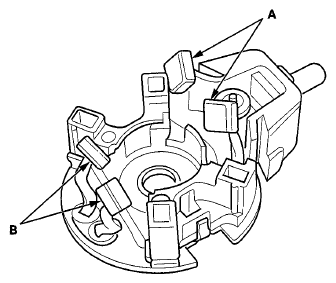

    Fig 11: Identifying Starter Brush

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Planetary Gear Inspection

13. Check the planetary gears (A) and internal ring gear (B). Replace them if they are worn or damaged.
    Fig 12: Identifying Planetary Gears And Internal Ring Gear

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Overrunning Clutch Inspection

14. Holding the drive gear (A), turn the gear shaft (B) clockwise. Check that the drive gear comes out to the other end. If the drive gear does not move smoothly, replace the gear cover assembly.
    Fig 13: Identifying Drive Gear And Gear Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Holding the drive gear, turn the gear shaft counterclockwise. The gear shaft should rotate freely. If the gear shaft does not rotate smoothly, replace the gear cover assembly.
16. If the drive gear is worn or damaged, replace the overrunning clutch assembly; the gear is not available separately. Check the condition of the flywheel ring gear. Replace it if the starter drive gear teeth are damaged.

Starter Reassembly

17. Install the brush into the brush holder, and set the armature (A) in the brush holder (B).
    NOTE: To seat the new brushes, slip a strip of #500 or #600 sandpaper, with the grit side up, between the commutator and each brush, and smoothly rotate the armature. The contact surface of the brushes will be sanded to the same contour as the commutator.

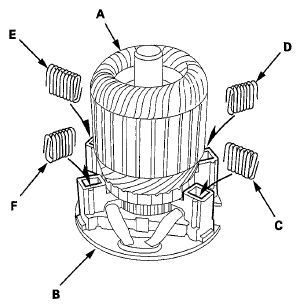

    Fig 14: Identifying Armature And Brush Holder

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. While squeezing a spring (C), insert it in the hole on the brush holder, and push it until it bottoms. Repeat this for the other three springs (D, E, and F).
19. Install the armature and brush holder assembly into the housing.
