EVAP Canister Filter Replacement

  1. Raise the vehicle on a lift.
  2. Disconnect the hoses (A).

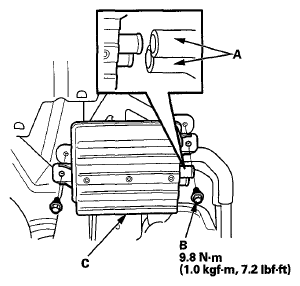

    Fig 1: Hoses, EVAP Canister Filter And Bolts With Torque Specifications
    G06429647Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B), then remove the EVAP canister filter (C).
  4. Install the parts in the reverse order of removal.
