Oil Pressure Switch Replacement
- Remove the engine undercover (see step 2
.

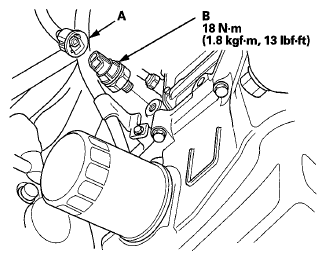

- Disconnect the oil pressure switch connector (A), then remove the oil pressure switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove all of the old liquid gasket from the switch and the switch mounting hole.
- Apply a very small amount of liquid gasket to the oil pressure switch threads, Install the component within 5 minutes of applying the liquid gasket.
NOTE:
- Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
- Install the oil pressure switch.
- Connect the oil pressure switch connector.
- Install the engine undercover (see step 5
).
