Exploded View

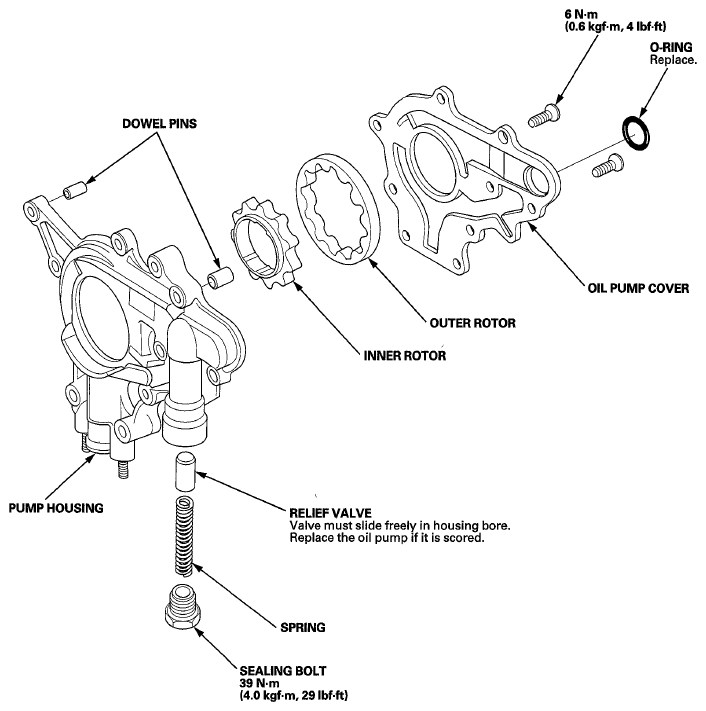

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G06429054Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required
