Torque Rod Bracket Replacement

  1. Raise the vehicle on the lift to full height.
  2. Support the transmission with a jack and a wood block under the transmission.
  3. Remove the torque rod (A).

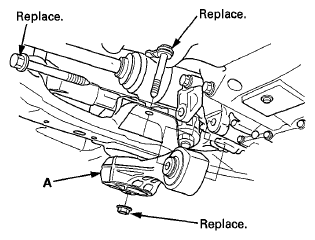

    Fig 1: Identifying Torque Rod
    G06428842Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the torque rod bracket (A).

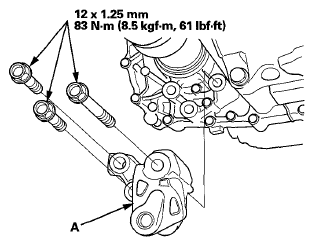

    Fig 2: Torque Rod Bracket With Torque Specifications
    G06428843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the torque rod bracket.
  6. Install the torque rod (A).
    NOTE: Be sure to install the torque rod with the "UP" mark facing up.

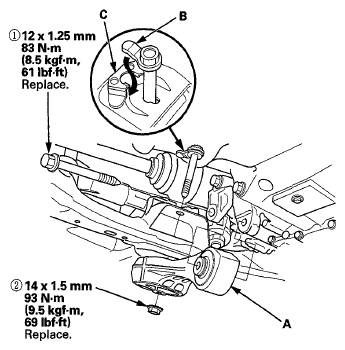

    Fig 3: Installing Bolt With Guide Plate And With Torque Specifications
    G06428844Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the bolt with the tab (B) on the bolt head aligned with the guide (C) on the front subframe, then tighten the new torque rod mounting bolt and nut in the numbered sequence shown.
  8. Remove the transmission jack and wood block from under the transmission.
  9. Lower the vehicle on the lift.
