Rod Bearing Selection

Inspect each connecting rod for cracks and heat damage.
Connecting Rod Big End Bore Code Locations
Each connecting rod falls into one of four tolerance ranges (from 0 to 0.024 mm (0.0009 in), in 0.006 mm (0.0002 in) increments) depending on the size of its big end bore. It's then stamped with a number or bar (1, 2, 3, or 4) indicating the range. You may find any combination of 1, 2, 3, or 4 in any engine.
If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Normal Bore Size: 43.0 mm (1.69 in)

Fig 1: Identifying Connecting Rod Big End Bore Code Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connecting Rod Journal Code Location
The connecting rod journal codes are stamped on the crankshaft.

Fig 2: Identifying Connecting Rod Journal Code Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use the big end bore codes and the rod journal codes to select appropriate replacement bearings from the following table.
NOTE: Color code is on the edge of the bearing.

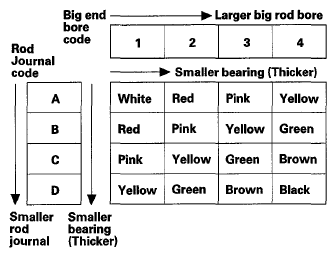

Fig 3: Bore Codes Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
