DTC P1440 (57): Motor Power Inverter (MPI) Module Output Circuit Malfunction: Notes

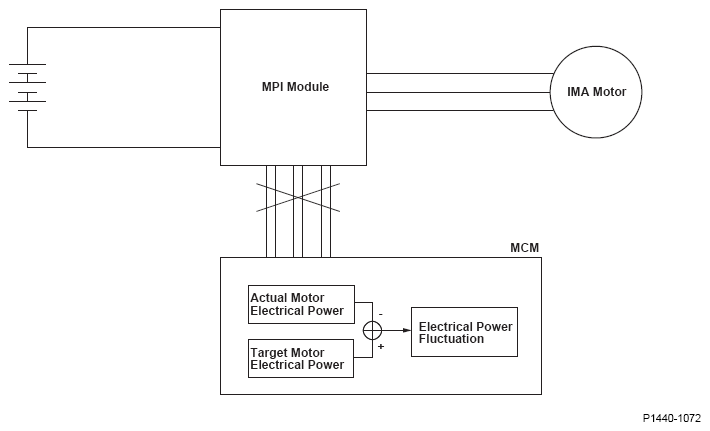

Fig 1: Motor Power Inverter (MPI) Module Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

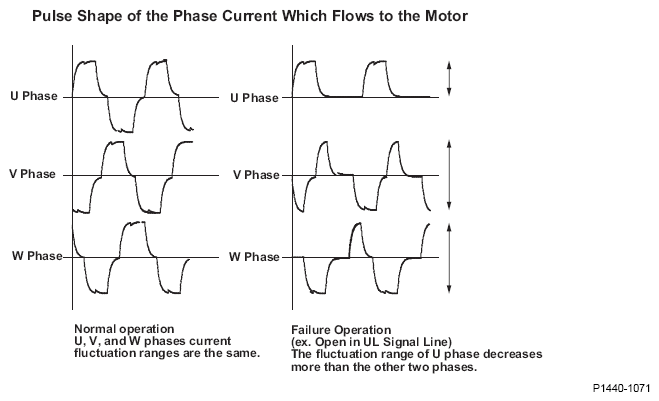

Fig 2: Pulse Shape Of Phase Current

Courtesy of AMERICAN HONDA MOTOR CO., INC.

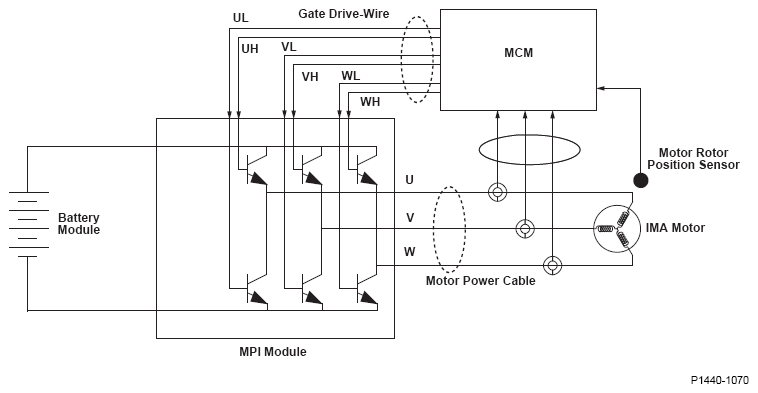

Fig 3: IMA Motor Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
