Fuel Pressure Relieving

Before disconnecting fuel lines or hoses, relieve pressure from the system by disabling the fuel pump and then disconnecting the fuel tube/quick connect fitting in the engine compartment.

Remove PGM-FI main relay 2 (A) from the auxiliary under-hood fuse/relay box (to the left of the 12 volt battery).

Fig 1: Identifying PGM-FI Main Relay 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Start the engine, and let it idle until it stalls.
NOTE: If any DTCs are stored, clear and ignore them.
Turn the ignition switch to LOCK (0).
Remove the fuel fill cap to relieve the pressure in the fuel tank.
Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the bracket (A) and the quick-connect fitting cover (B) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).

Fig 2: Bracket, Quick-Connect Fitting Cover And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the fuel quick-connect fitting for dirt, and clean it if needed.
Place a rag or shop towel over the quick-connect fitting (A).

Fig 3: Identifying Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.

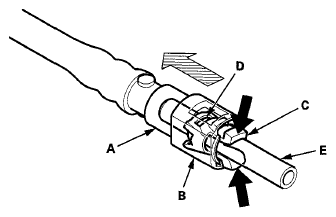

Disconnect the quick-connect fitting (A): Hold the connector (B) with one hand, and squeeze the retainer tabs (C) with the other hand to release them from the locking tabs (D). Pull the connector off.
NOTE:
- Be careful not to damage the line (E) or other parts.
- Do not use tools.
- If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
- Do not remove the retainer from the line; once removed, the retainer must be replaced with a new one.
Fig 4: Disconnecting Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After disconnecting the quick-connect fitting, check it for dirt or damage (see step 4 on ).
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
