PCM Circuit Diagram

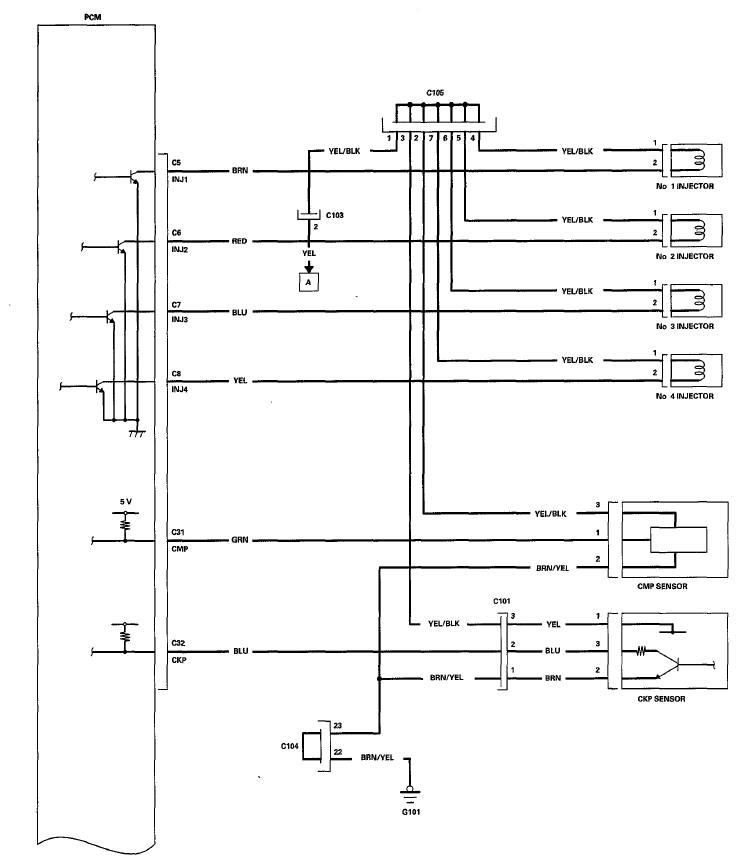

Fig 1: PCM - Circuit Diagram (1 Of 14)

G06429165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

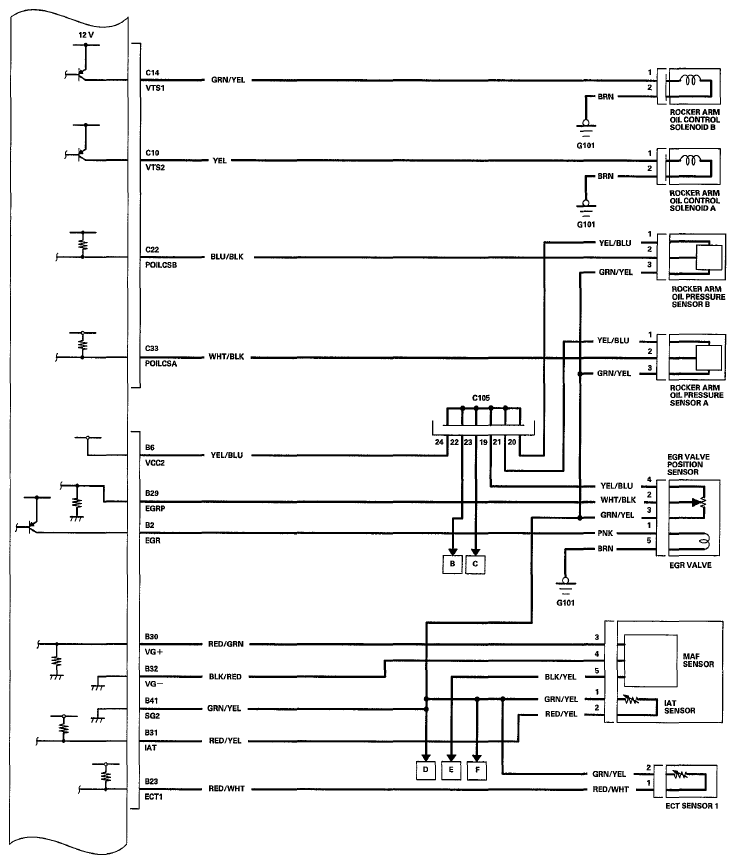

Fig 2: PCM - Circuit Diagram (2 Of 14)

G06429166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

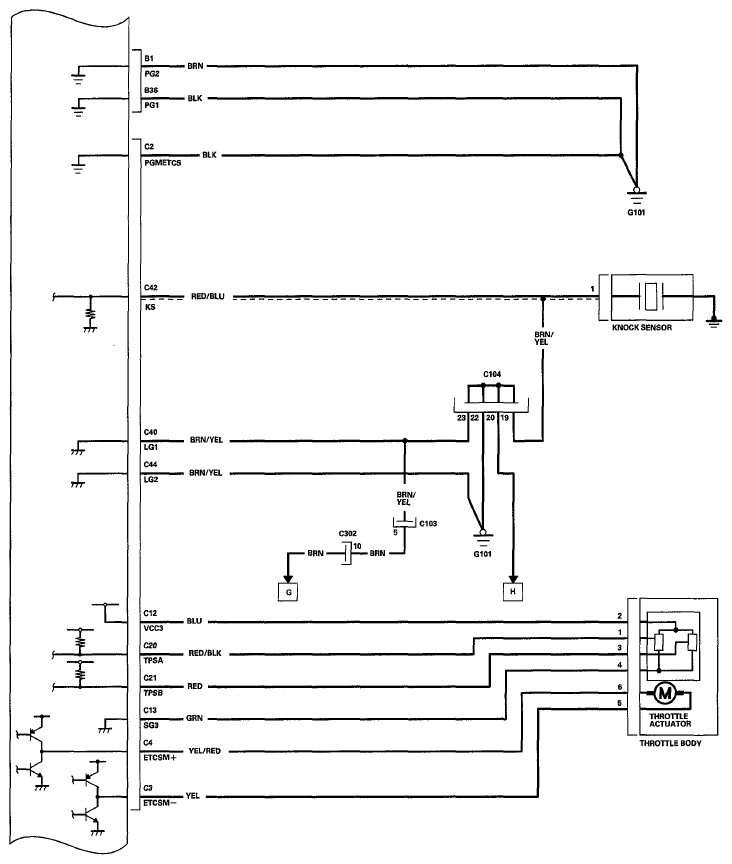

Fig 3: PCM - Circuit Diagram (3 Of 14)

G06429167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

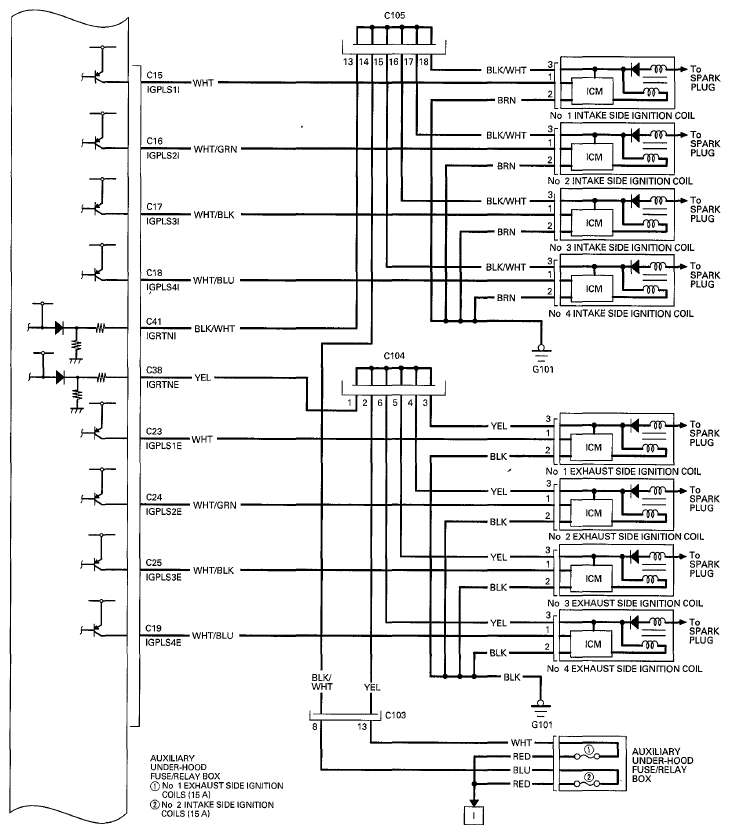

Fig 4: PCM - Circuit Diagram (4 Of 14)

G06429168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

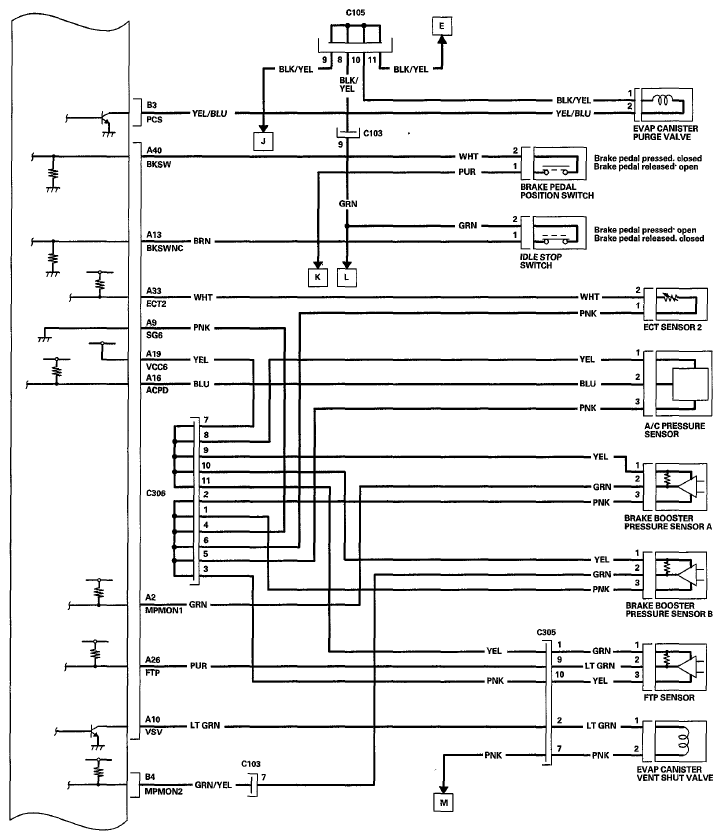

Fig 5: PCM - Circuit Diagram (5 Of 14)

G06429169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

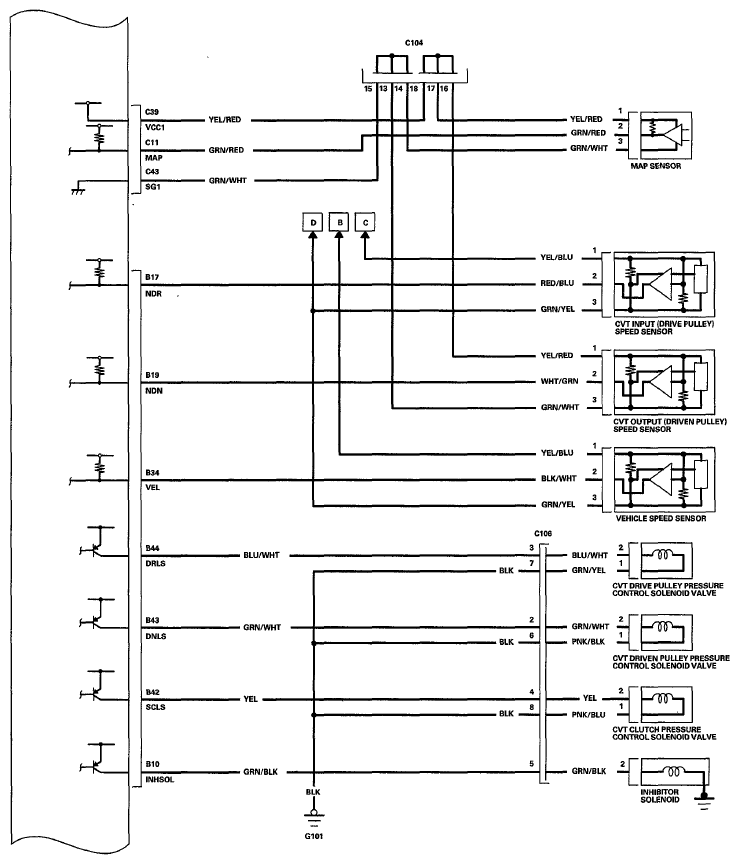

Fig 6: PCM - Circuit Diagram (6 Of 14)

G06429170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

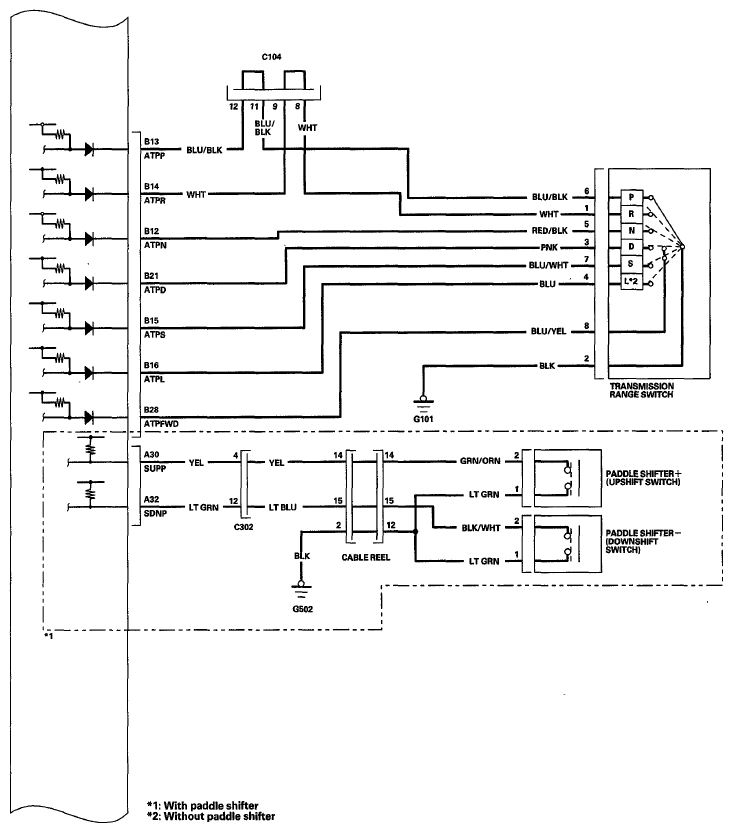

Fig 7: PCM - Circuit Diagram (7 Of 14)

G06429171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

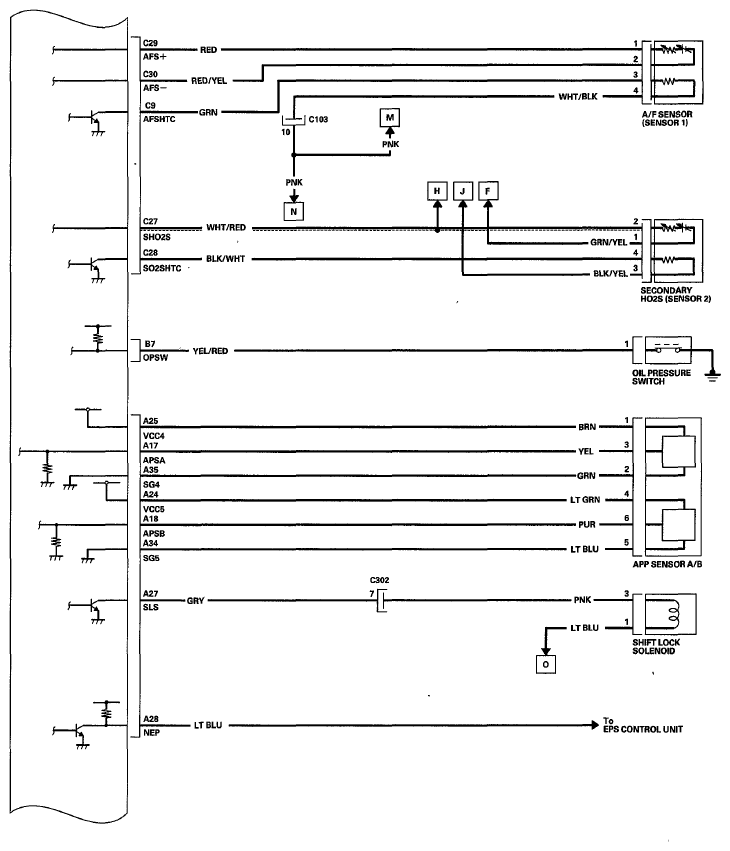

Fig 8: PCM - Circuit Diagram (8 Of 14)

G06429172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

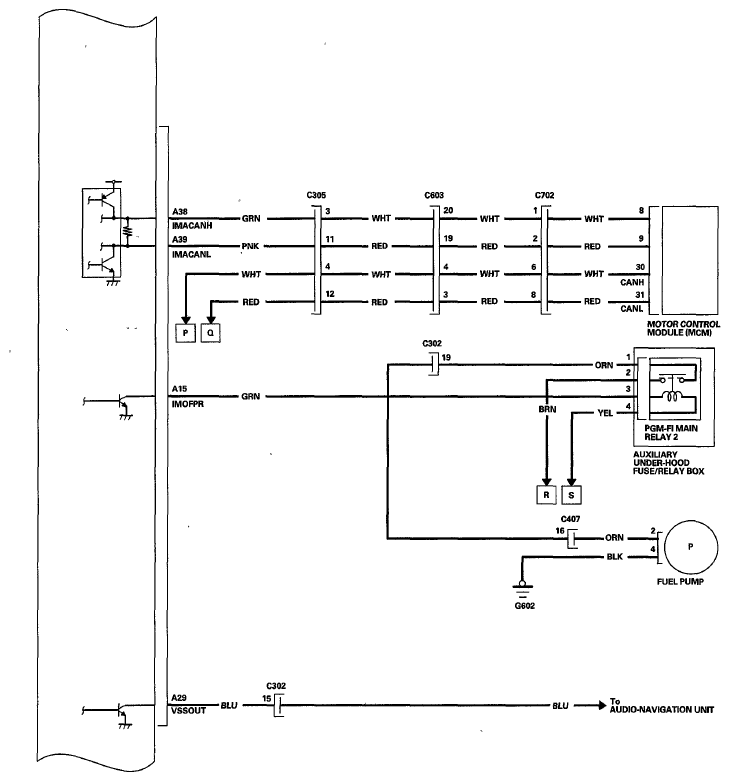

Fig 9: PCM - Circuit Diagram (9 Of 14)

G06429173

Courtesy of AMERICAN HONDA MOTOR CO., INC.

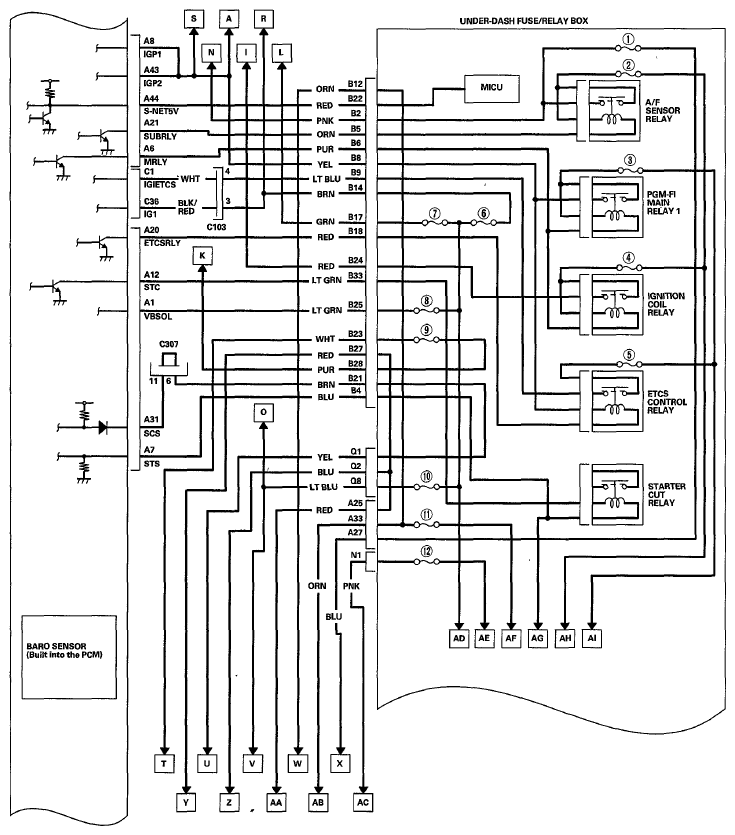

Fig 10: PCM - Circuit Diagram (10 Of 14)

G06429174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

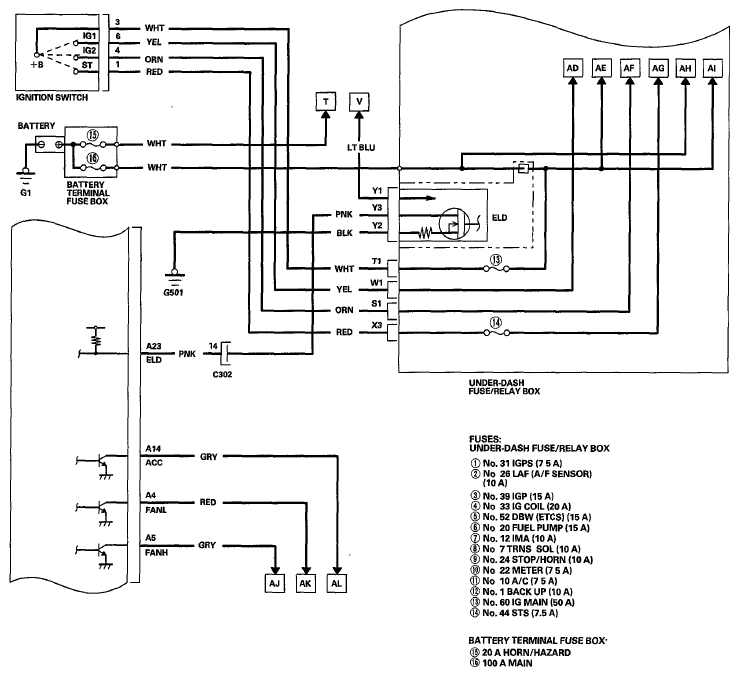

Fig 11: PCM - Circuit Diagram (11 Of 14)

G06429175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

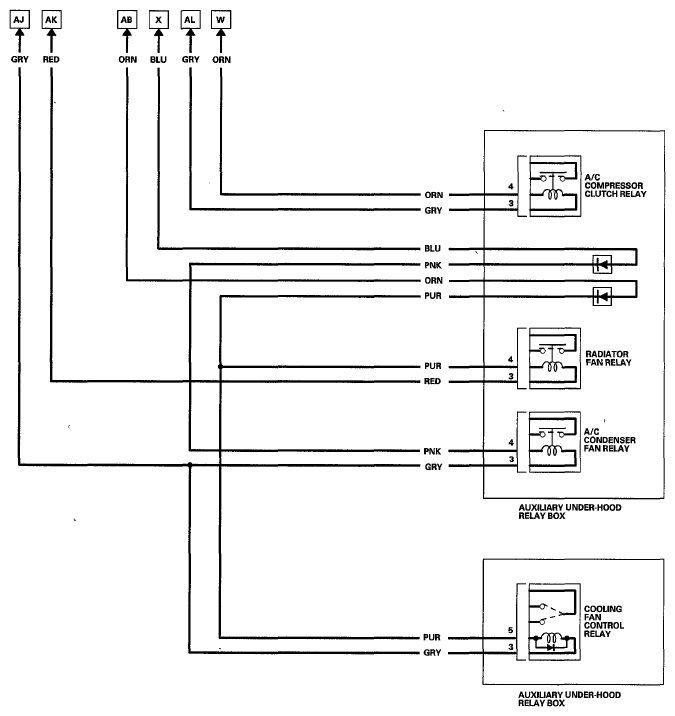

Fig 12: PCM - Circuit Diagram (12 Of 14)

G06429176

Courtesy of AMERICAN HONDA MOTOR CO., INC.

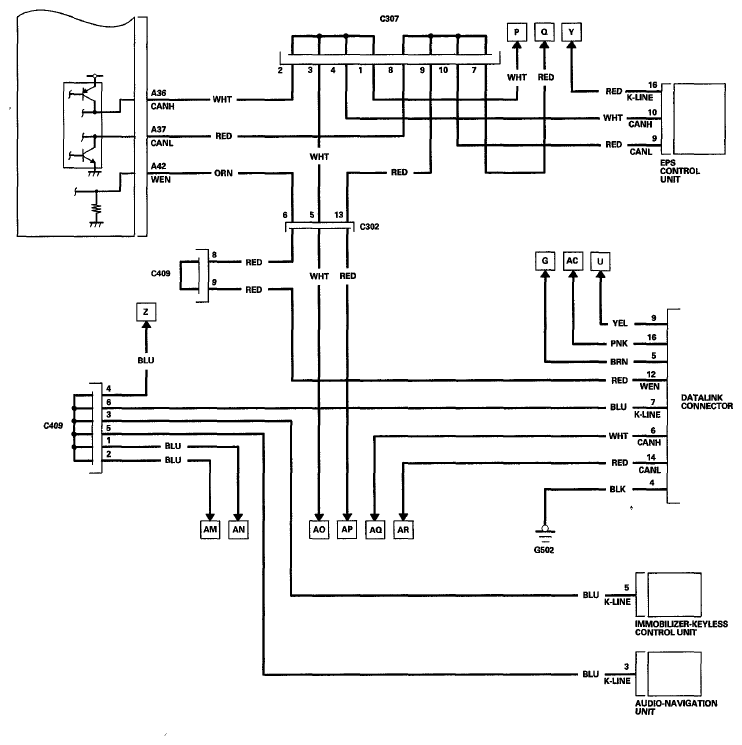

Fig 13: PCM - Circuit Diagram (13 Of 14)

G06429177

Courtesy of AMERICAN HONDA MOTOR CO., INC.

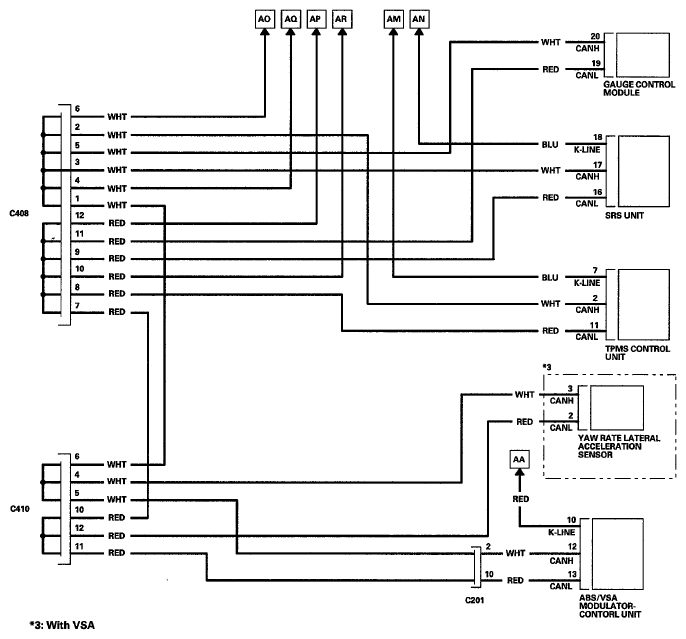

Fig 14: PCM - Circuit Diagram (14 Of 14)

G06429178

Courtesy of AMERICAN HONDA MOTOR CO., INC.
