ECT Sensor 1 Replacement

  1. Drain the engine coolant (see COOLANT CHECK ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Disconnect the ECT sensor 1 connector (A).

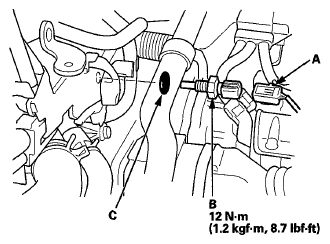

    Fig 1: ECT Sensor 1 Connector With Torque Specifications
    G06429382Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove ECT sensor 1 (B).
  5. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT CHECK ).
