ELD Replacement

Remove the under-dash fuse/relay box (see REMOVAL AND INSTALLATION ).
Remove the fuse (A).

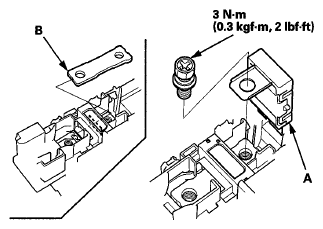

Fig 1: Fuse With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the joint bar (B).
Turn over the under-dash fuse/relay box, then remove the ELD (A).

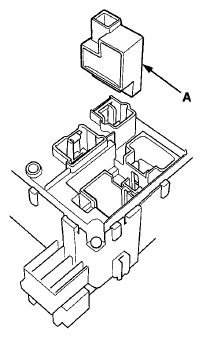

Fig 2: Identifying ELD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
