Rocker Arm Oil Control Valve Removal/Installation

Remove the engine cover (see step 2 IGNITION COIL REPLACEMENT ).
Disconnect the rocker arm oil control solenoid B connector (A), the rocker arm oil control solenoid A connector (B), the rocker arm oil pressure sensor A connector (C), and the rocker arm oil pressure sensor B connector (D).

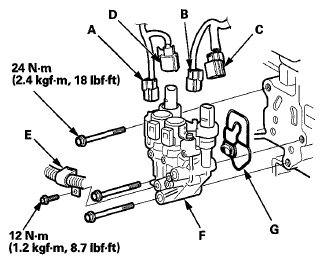

Fig 1: Rocker Arm Oil Control Solenoid B Connector, Rocker Arm Oil Control Solenoid A Connector AND Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness holder (E) from the rocker arm oil control valve.
Remove the bolts.
Remove the rocker arm oil control valve (F).
Install the valve in the reverse order of removal with a new rocker arm oil control valve filter (G).
