Ignition Coil Replacement

Remove the under-cowl panel (see COWL COVER REPLACEMENT ).
Remove the engine cover.

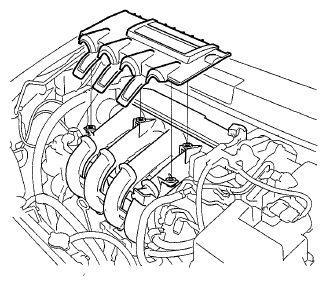

Fig 1: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ignition coil connectors, then remove the intake side ignition coils (A) and the exhaust side ignition coils (B).

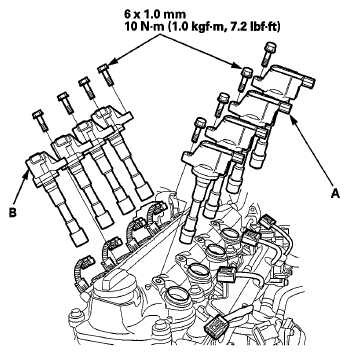

Fig 2: Intake Side And Exhaust Side Ignition Coils With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
