System Outline

This system is composed of the ABS modulator-control unit, the wheel speed sensors, and the system indicators in the gauge control module. The ABS modulator-control unit controls the ABS, EBD, CAS, and brake assist with the brake pressure of each wheel.

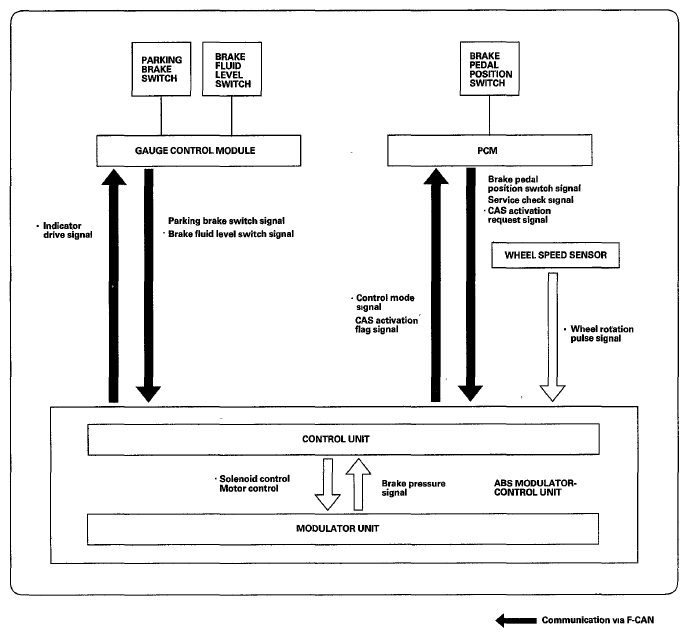

Fig 1: ABS Modulator-Control Unit Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
