Wheel Speed Sensor Replacement: Front
- Turn the ignition switch to LOCK (0).
- Remove the front wheels.

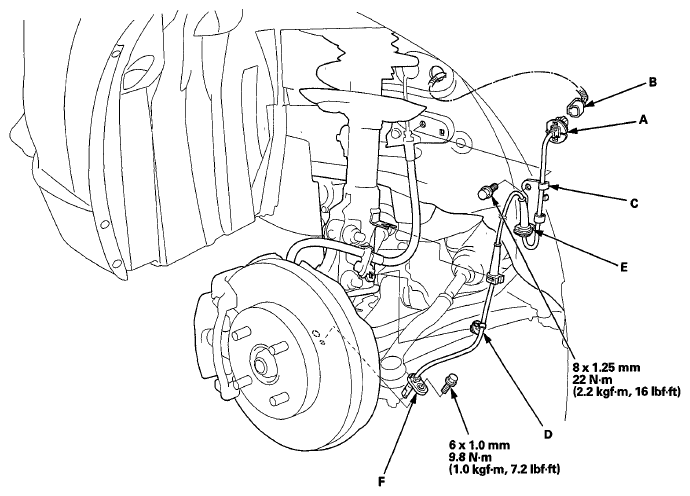

- Remove the grommet (A), then disconnect the wheel speed sensor connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bolt and the bracket (C), the clip (D), and the grommet (E).
- Remove the bolt and the wheel speed sensor (F).
- Install the wheel speed sensor in the reverse order of removal, and note these items:
- Do not twist the sensor wires.
- If the wheel speed sensor comes in contact with the wheel bearing unit, it is faulty.
- Make sure the grommet is installed properly.
- Make sure there is no debris in the sensor mounting hole.
- Start the engine, and make sure the ABS, indicator go off.
- Test-drive the vehicle, and make sure the ABS, indicator do not come on.
