DTC U0155: F-CAN Malfunction (Powertrain Control Module (PCM)-Gauge Control Module) (CVT System): Notes

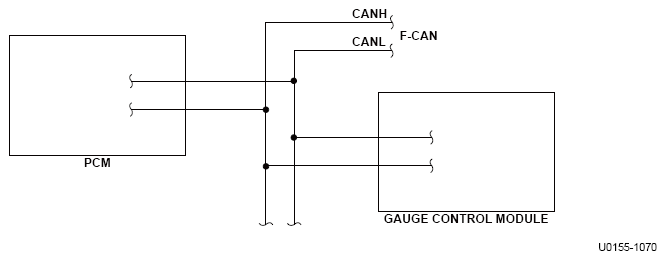

Fig 1: PCM-Gauge Control Module Communication Diagram
G06617417Courtesy of AMERICAN HONDA MOTOR CO., INC.
