MAP Sensor Replacement

Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
Disconnect the MAP sensor 3P connector (A).

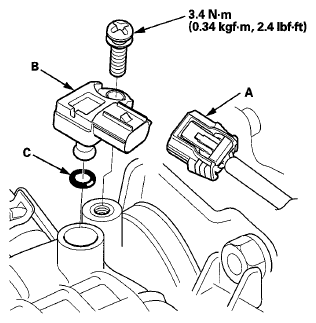

Fig 1: MAP Sensor 3P Connector With Torque Specifications And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the MAP sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
