DTC P1743: Problem in Shift Control System; Shift Valve E Stuck OFF: Notes

Fig 1: Shift Control System Shift Valve E Stuck Off Operation Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Shift Gear Position Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

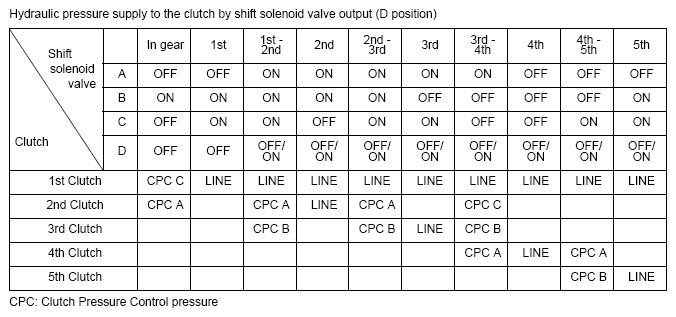

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 3: Shift Solenoid Valve And Clutch Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CPC: Clutch Pressure Control pressure
