Driving Position Memory Switch Test/Replacement

Remove the driver's door panel.
- 4-door (see 4-DOOR )
- 2-door (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
Disconnect the 7P connector (A) from the driver's position memory switch (B).

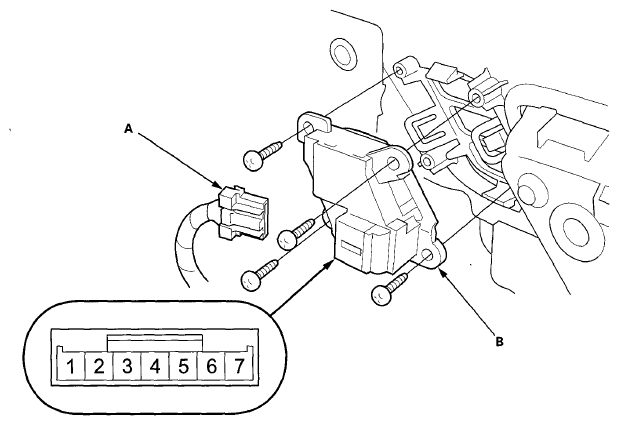

Fig 1: Identifying Driver Position Memory Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

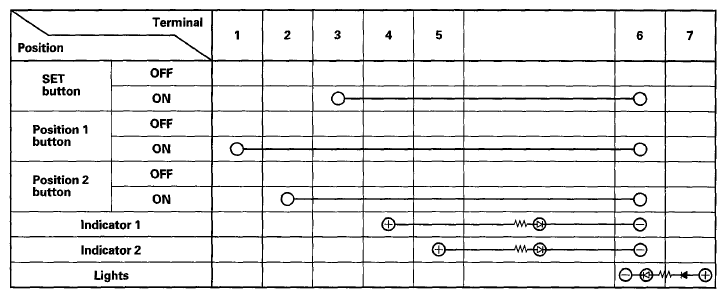

  Fig 2: Driver Position Memory Switch Continuity Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
