Power Seat Adjustment Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations 4-door (see COMPONENT LOCATION INDEX ), 2-door (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the power seat adjustment switch knobs (A) and the recline cover from the driver's seat.
- 4-door (see 4-DOOR )
- 2-door (see FRONT SEAT CUSHION COVER REPLACEMENT )

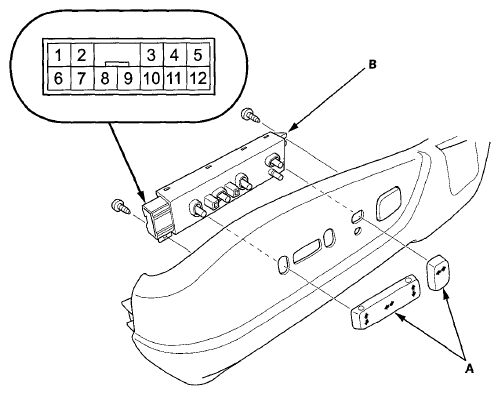

  Fig 1: Identifying Power Seat Adjustment Switch Connector Terminals
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the power seat adjustment switch (B).
Disconnect the 12P connector from the power seat adjustment switch.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each position according to the table.

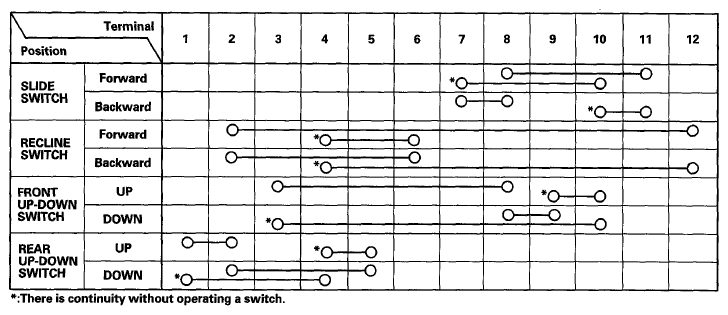

Fig 2: Power Seat Adjustment Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
