Passenger's Power Window Switch Test

Remove the passenger's power window switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).

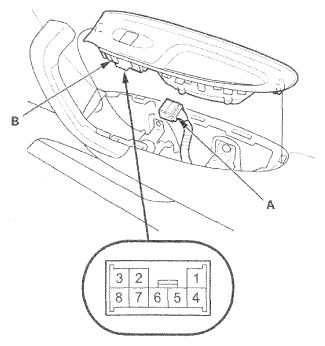

Disconnect the 8P connector (A) from the passenger's power window switch (B).

Fig 1: Identifying Passenger's Power Window Motor With 22P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

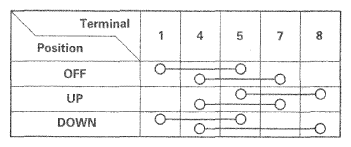

Check for continuity between the terminals in each position according to the table.

Fig 2: Passenger's Power Window Motor Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect battery power to terminal No. 8 and ground terminal No. 4 (or No. 5). The switch light should come on.
If the continuity is not as specified, replace the switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
