EGR Pipe Removal and Installation: Installation

Install the EGR pipe to the water passage side, then tighten the nuts (A) by hand with a new gasket (B).

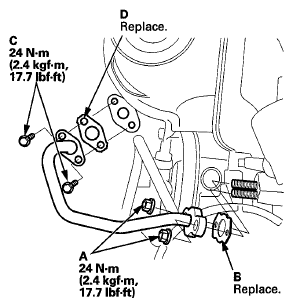

Fig 1: Locating EGR Pipe Nuts And Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the EGR pipe to the TWC side, tighten the bolts (C) by hand with a new gasket (D), then torque the bolts.
Torque the nuts on the water passage side.
Install the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
