EVAP Canister Replacement

Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).

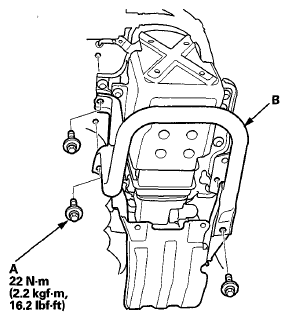

Remove the bolts (A), then remove the EVAP canister guard (B).

Fig 1: EVAP Canister Guard And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

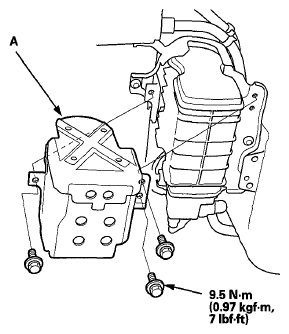

Remove the EVAP canister cover (A).

Fig 2: EVAP Canister Cover With Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

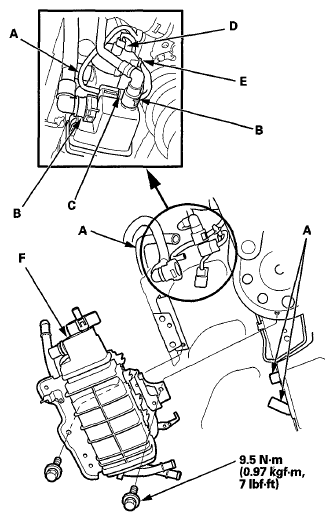

Disconnect the hoses (A).

Fig 3: Identifying Hoses, FTP Sensor 3P Connector, Evap Canister Vent Shut Valve 2P Connector And Harness Clip With torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the quick-connect fittings (B) from the EVAP canister (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).
Disconnect the FTP sensor 3P connector (C) and the EVAP canister vent shut valve 2P connector (D), then remove the harness clip (E).
Remove the bolts, then remove the EVAP canister assembly (F).

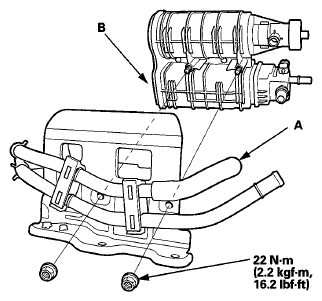

Disconnect the drain tube (A), then remove the EVAP canister (B) from the EVAP canister bracket.

Fig 4: Identifying Drain Tube And EVAP Canister With torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the FTP sensor (see FTP SENSOR REPLACEMENT ).
Remove the EVAP canister vent shut valve (see EVAP CANISTER VENT SHUT VALVE REPLACEMENT ).
Install the parts in the reverse order of removal.
