ECM/PCM Electrical Connections

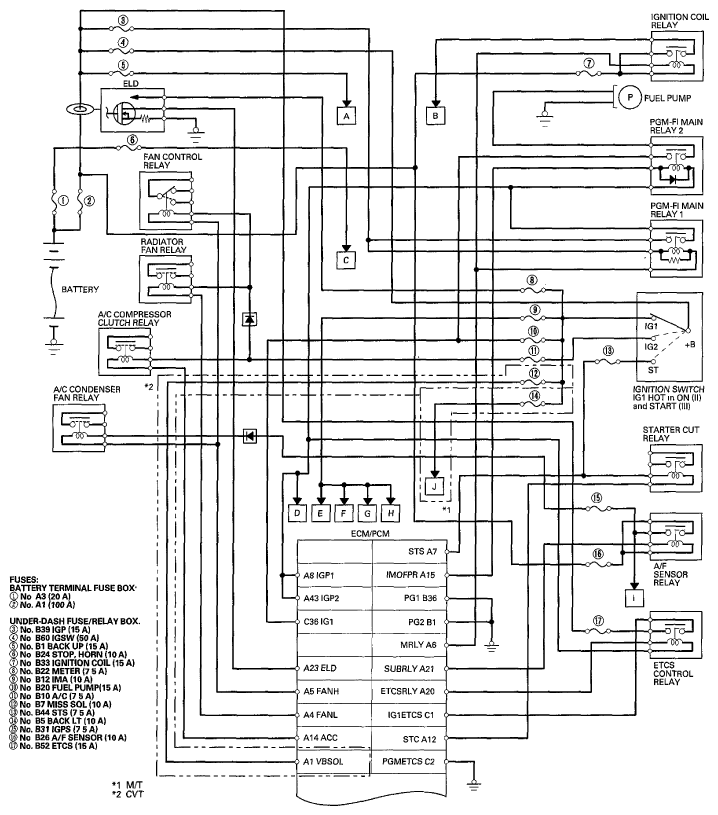

Fig 1: ECM/PCM Electrical Connections (1 Of 6)

G06949725

Courtesy of AMERICAN HONDA MOTOR CO., INC.

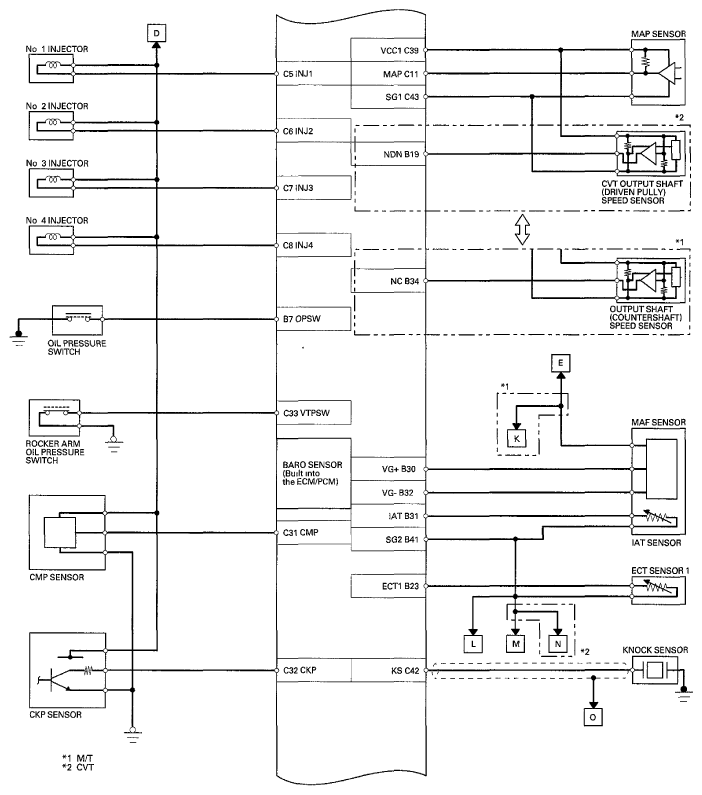

Fig 2: ECM/PCM Electrical Connections (2 Of 6)

G06949726

Courtesy of AMERICAN HONDA MOTOR CO., INC.

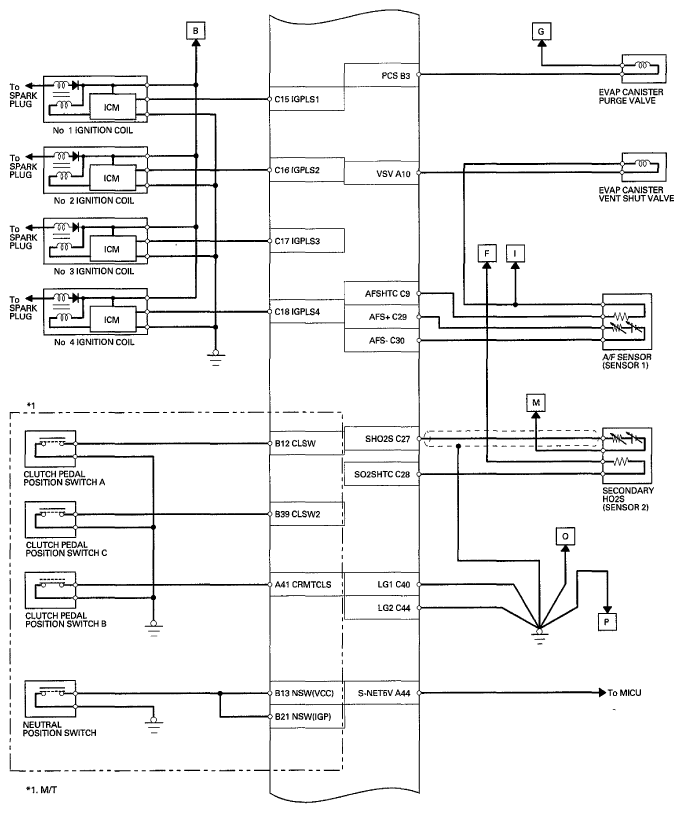

Fig 3: ECM/PCM Electrical Connections (3 Of 6)

G06949727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

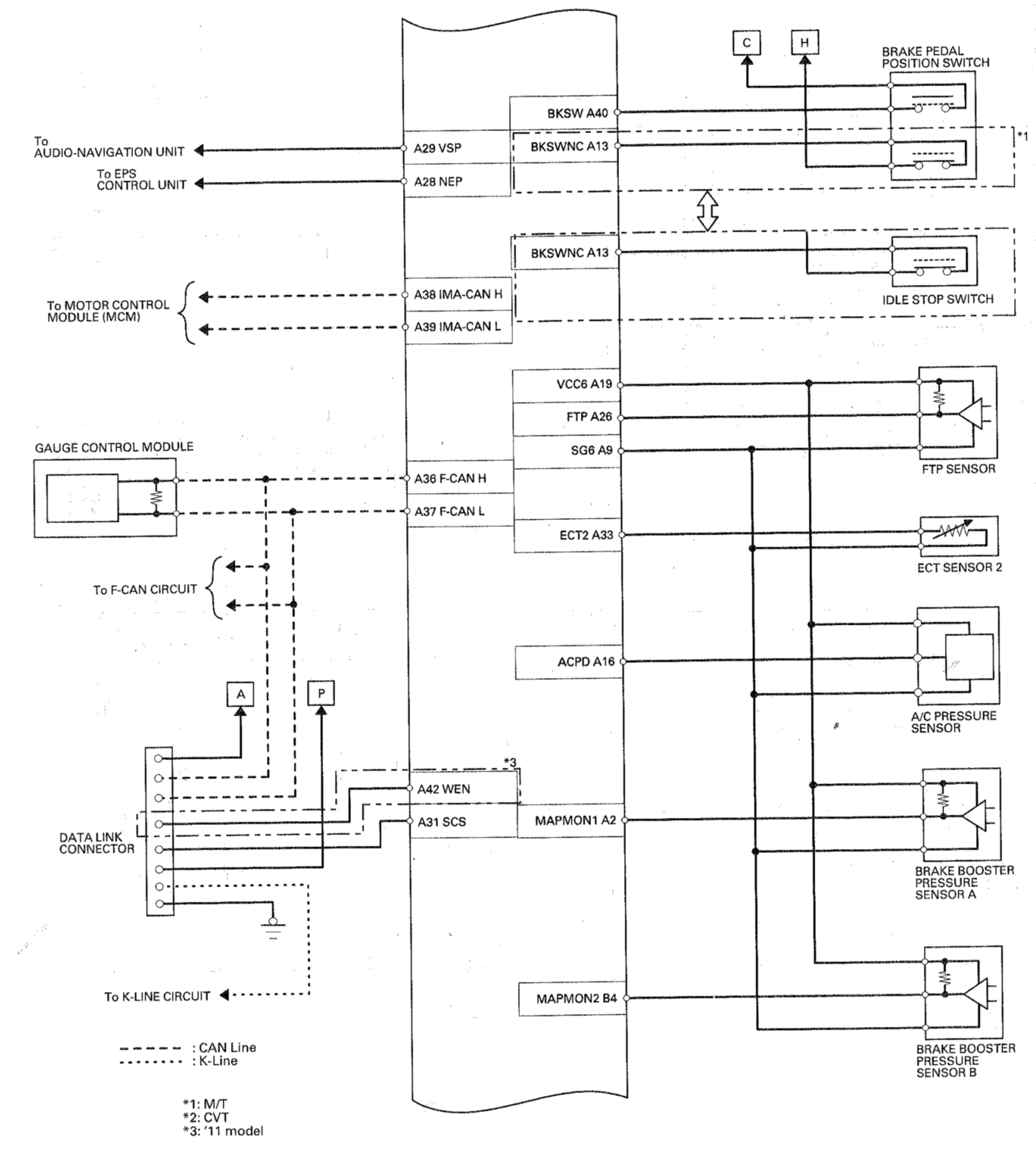

Fig 4: ECM/PCM Electrical Connections (4 Of 6)

G06949728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

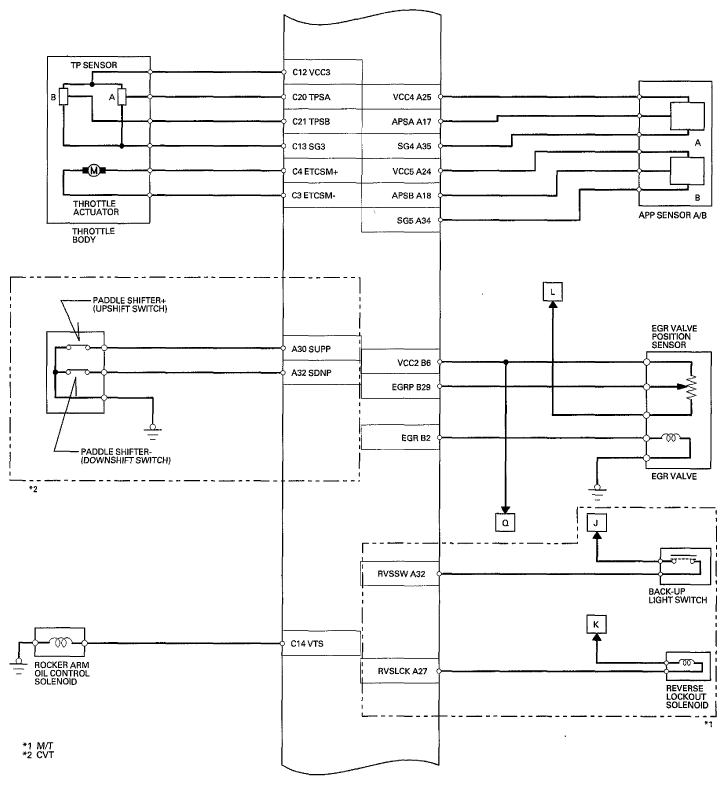

Fig 5: ECM/PCM Electrical Connections (5 Of 6)

G06949729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

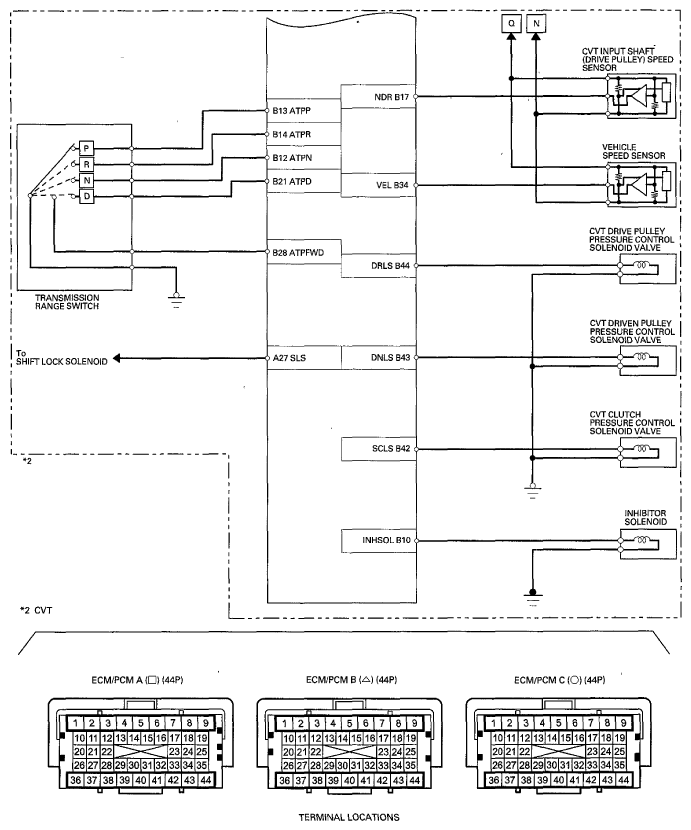

Fig 6: ECM/PCM Electrical Connections (6 Of 6)

G06949730

Courtesy of AMERICAN HONDA MOTOR CO., INC.
