Rocker Arm Oil Control Valve Removal/Installation

Remove the harness holder (A).

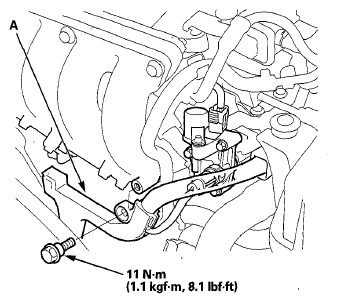

Fig 1: Harness Holder With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector(B).

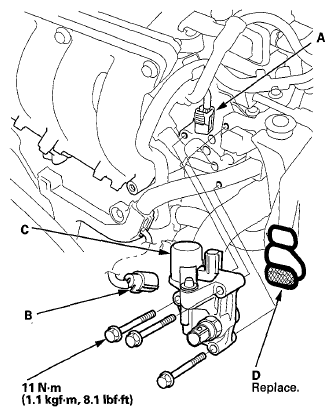

Fig 2: Rocker Arm Oil Control Solenoid Connector And Rocker Arm Oil Pressure Switch Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm oil control valve assembly (C) and the rocker arm oil control valve filter (D).
Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
