Power Window Master Switch Test

Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
Disconnect the 22P connector (A) from the power window master switch (B).

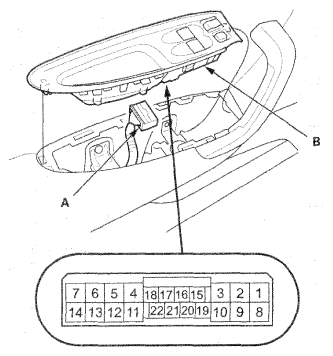

Fig 1: Identifying Power Window Master Switch With 22P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

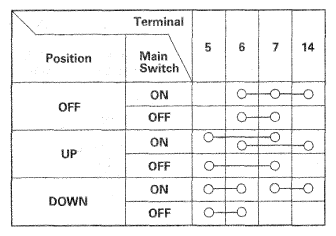

Check for continuity between the terminals in each position according to the table.
Driver's Switch

The drivers switch is combined with the control unit so you cannot isolate the switch to test it.

Instead, run the power window master switch input test procedures (see POWER WINDOW MASTER SWITCH INPUT TEST ). If the tests are normal, the driver's switch must be faulty; replace the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).

Passenger's Switch

Fig 2: Identifying Passenger's Power Window Switch With 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
