Power Window Motor Removal and Installation: Installation

NOTE: The holes for the mounting screws (C) in a new power window motor (A) are not threaded. The screws cut threads in the holes the first time they are installed.

Install the power window motor (A) onto the regulator (B) as shown, and tighten the screws (C) until the screw head contacts with the linkage.
NOTE:
- Keep the screws (C) perfectly straight while screwing them in.
- Do not use the air tool and impact wrench.
- Do not use any other screws; these screws (C) are designed to cut the threads.

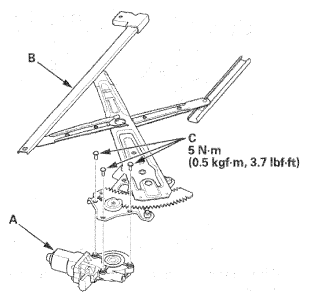

  Fig 1: Power Window Motor, Mounting Screws And Regulator With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the screws (C), and retighten the screws to specified torque.
Install the door glass and regulator (see DOOR GLASS AND REGULATOR REPLACEMENT ).
Install the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
