VSA Modulator-Control Unit Removal and Installation: Installation

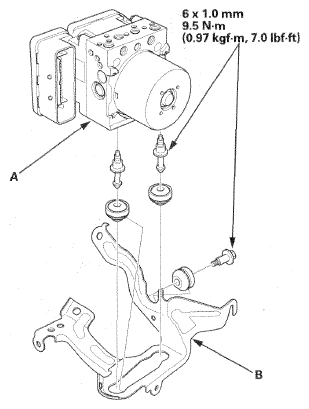

Install the VSA modulator-control unit (A) onto the bracket (B).

Fig 1: VSA Modulator-Control Unit And Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

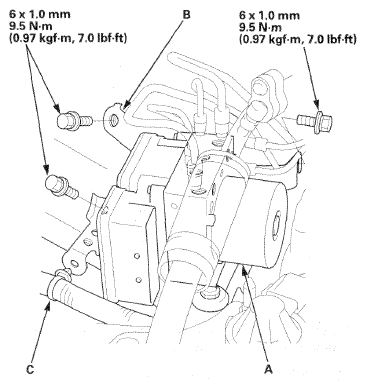

Install the VSA modulator-control unit (A) with the bracket (B) to the body.

Fig 2: VSA Modulator-Control Unit, Bracket And Wire Harness Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the wire harness clip (C) to the bracket.
Align the connecting surface of the VSA modulator-control unit 32P connector (A) to the VSA modulator-control unit.

Fig 3: Identifying VSA Modulator-Control Unit 32P Connector And Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up the lever (B) of the VSA modulator-control unit 32P connector, then confirm the connector is fully seated.

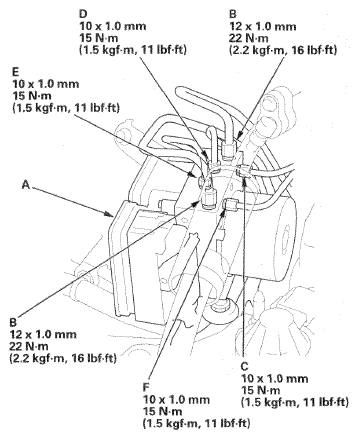

Connect the 10 mm brake lines and the 12 mm brake lines to the VSA modulator-control unit (A).
NOTE: The brake lines are connected to the master cylinder (B), the left-rear (C), the right-front (D), the left-front (E), and the right-rear (F) brake systems.

Fig 4: VSA Modulator-Control Unit And Master Cylinder With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the VSA sensor neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
Start the engine, and check that the VSA indicators go off.
Test-drive the vehicle, and make sure that the VSA indicators do not come on.
NOTE: If the brake pedal is spongy, there may be air trapped in the modulator which could then be induced into the normal brake system during modulation. Bleed the brake system again (see BRAKE SYSTEM BLEEDING ).
