VSA Off Switch Test/Replacement

Turn the ignition switch to LOCK (0).
Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Push out the VSA OFF switch (A) from the back of the instrument panel (B).

Fig 1: Identifying VSA OFF Switch And Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
On the switch side, check for continuity between the VSA OFF switch 5P connector terminal in each switch position according to the table.

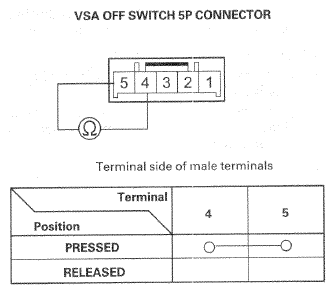

Fig 2: Checking Continuity Between VSA OFF Switch 5P Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the switch does not work as described in the table, replace the switch.
- If the switch tests OK, go to step 5.
On the switch side, check for continuity between VSA OFF switch 5P connector terminals No. 1 and No. 2. There should be continuity at all times.

Fig 3: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the cover (A), and replace the bulb (B).

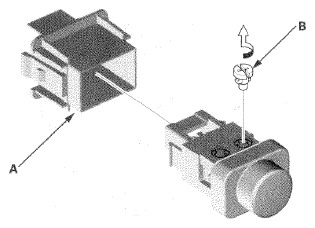

Fig 4: Removing Cover And Bulb
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the VSA OFF switch in the reverse order of removal.
