Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the grommet (A), then disconnect the wheel speed sensor 2P connector (B).

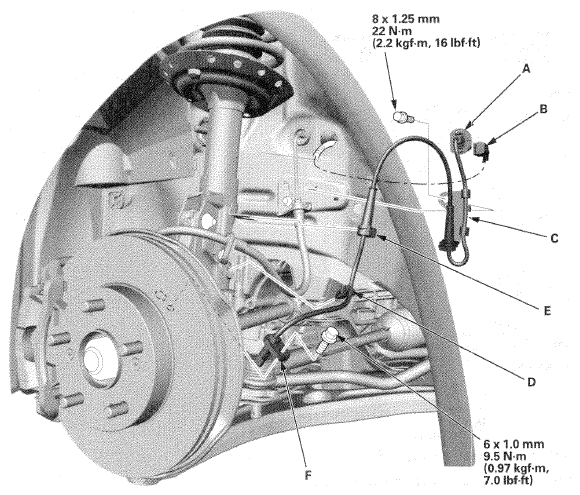

    Fig 1: Wheel Speed Sensor Replacement Components With Torque Specifications
    G06953283Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt and the bracket (C), the clip (D), and the wire guide grommet (E).
  4. Remove the bolt and the wheel speed sensor (F).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
  6. Start the engine, and make sure the VSA indicators go off.
  7. Test-drive the vehicle, and make sure the VSA indicators do not come on.
