EVAP Canister Vent Shut Valve Replacement

  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS )..
  2. Remove the bolts (A), then remove the canister guard (B).

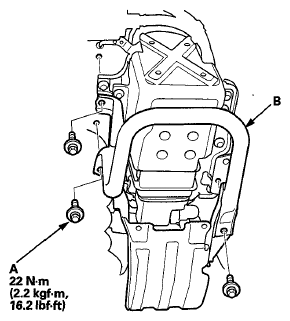

    Fig 1: Canister Guard And Bolts With Torque Specifications
    G06950183Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the EVAP canister vent shut valve connector (A), then remove the harness clip (B).

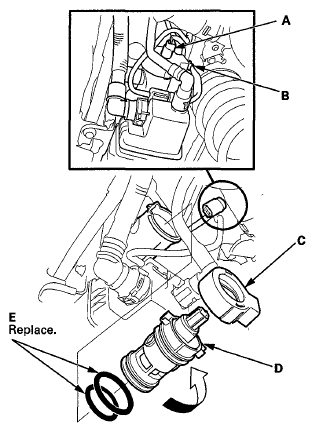

    Fig 2: Identifying EVAP Canister Vent Shut Valve, Connector, Harness Clip, Cap And O-Rings
    G06950184Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the cap (C).
  5. Remove the EVAP canister vent shut valve (D).
  6. Install the parts in the reverse order of removal with new O-rings (E) and a new cap.
    NOTE: Do not coat the O-rings with engine oil.
