Throttle Body Disassembly/Reassembly

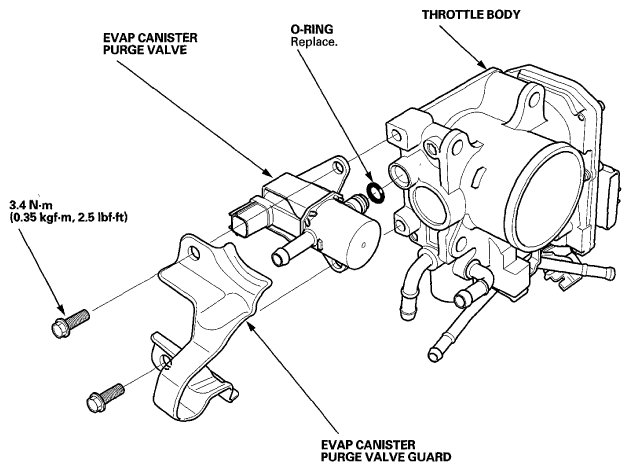

Fig 1: Exploded View Of Throttle Body With Torque Specifications
G06949999Courtesy of AMERICAN HONDA MOTOR CO., INC.
