ECM/PCM Circuit Diagram

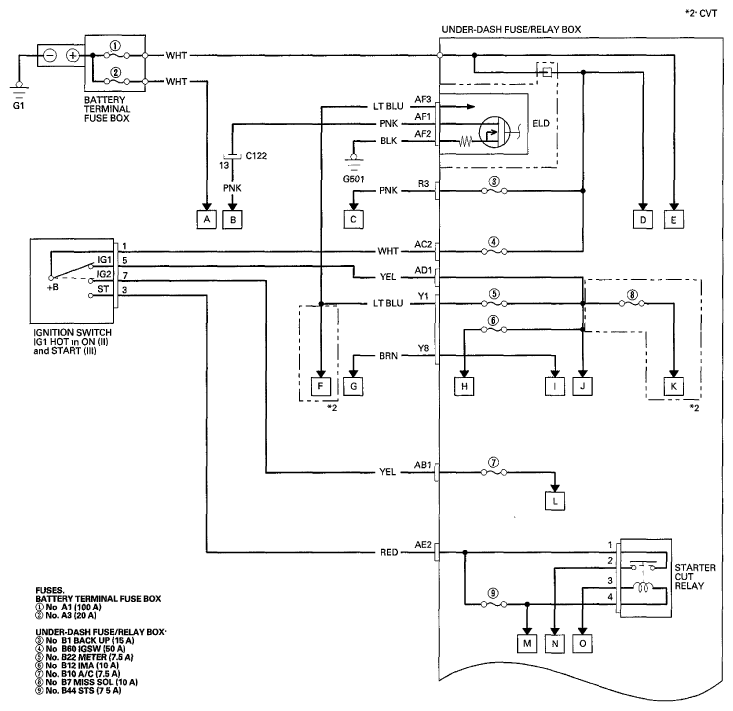

Fig 1: ECM/PCM Circuit Diagram (1 Of 15)

G06949731

Courtesy of AMERICAN HONDA MOTOR CO., INC.

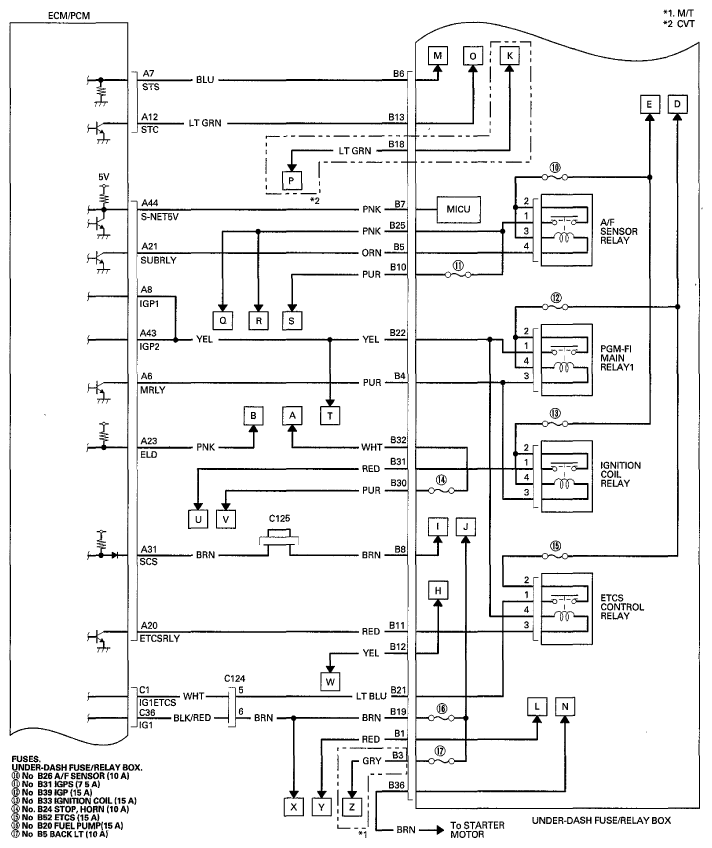

Fig 2: ECM/PCM Circuit Diagram (2 Of 15)

G06949732

Courtesy of AMERICAN HONDA MOTOR CO., INC.

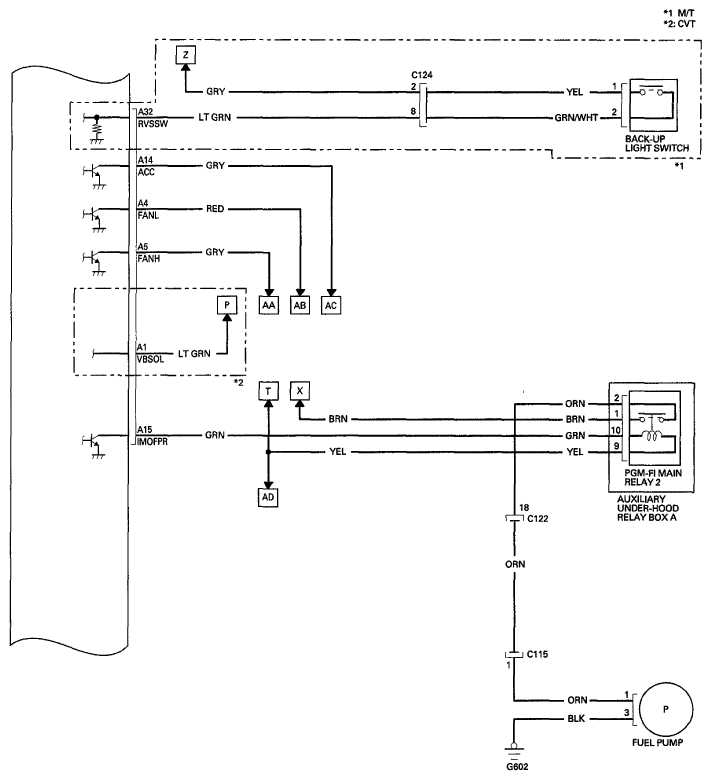

Fig 3: ECM/PCM Circuit Diagram (3 Of 15)

G06949733

Courtesy of AMERICAN HONDA MOTOR CO., INC.

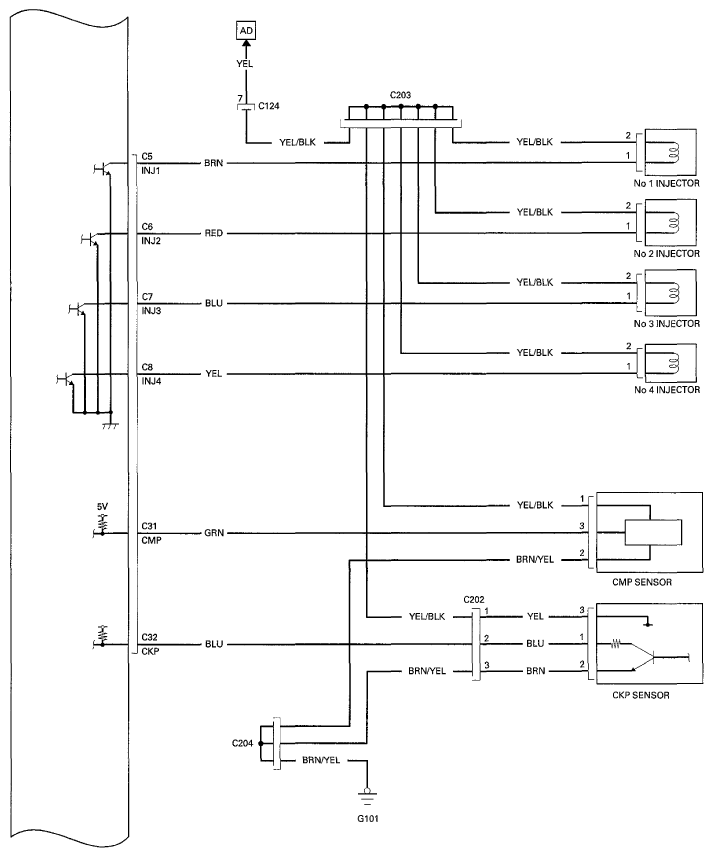

Fig 4: ECM/PCM Circuit Diagram (4 Of 15)

G06949734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

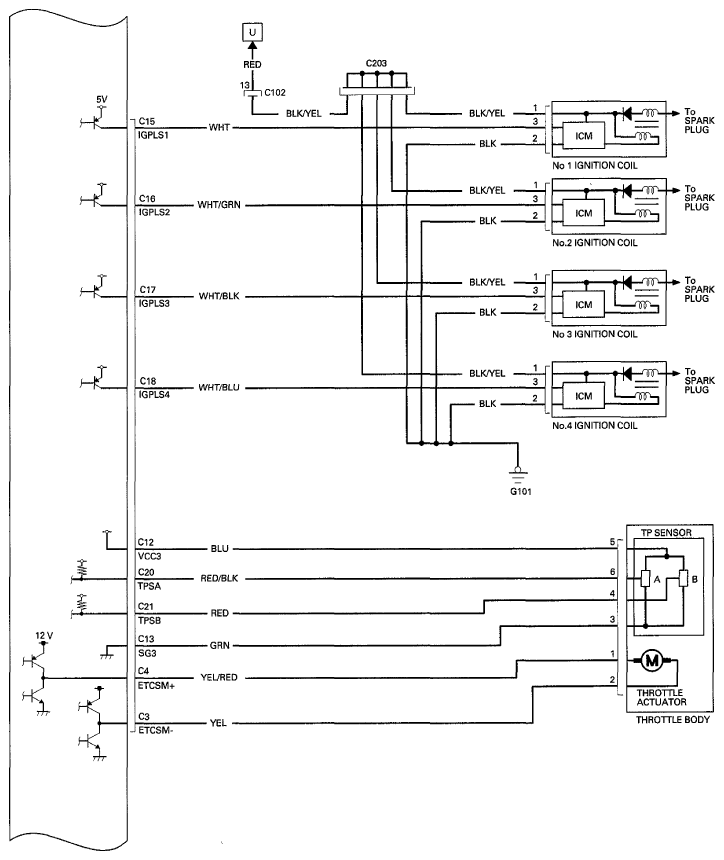

Fig 5: ECM/PCM Circuit Diagram (5 Of 15)

G06949735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

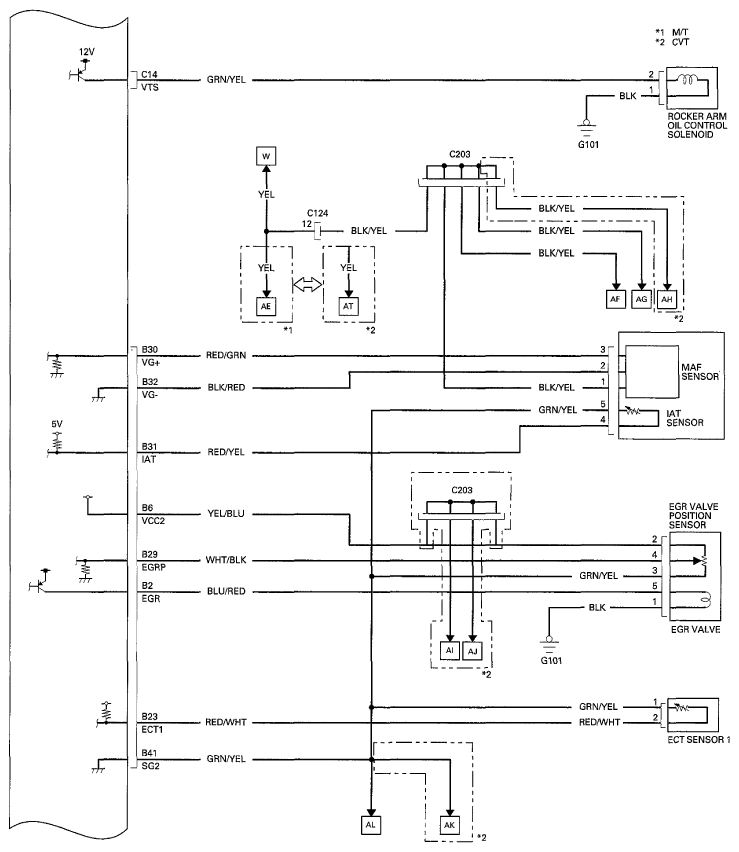

Fig 6: ECM/PCM Circuit Diagram (6 Of 15)

G06949736

Courtesy of AMERICAN HONDA MOTOR CO., INC.

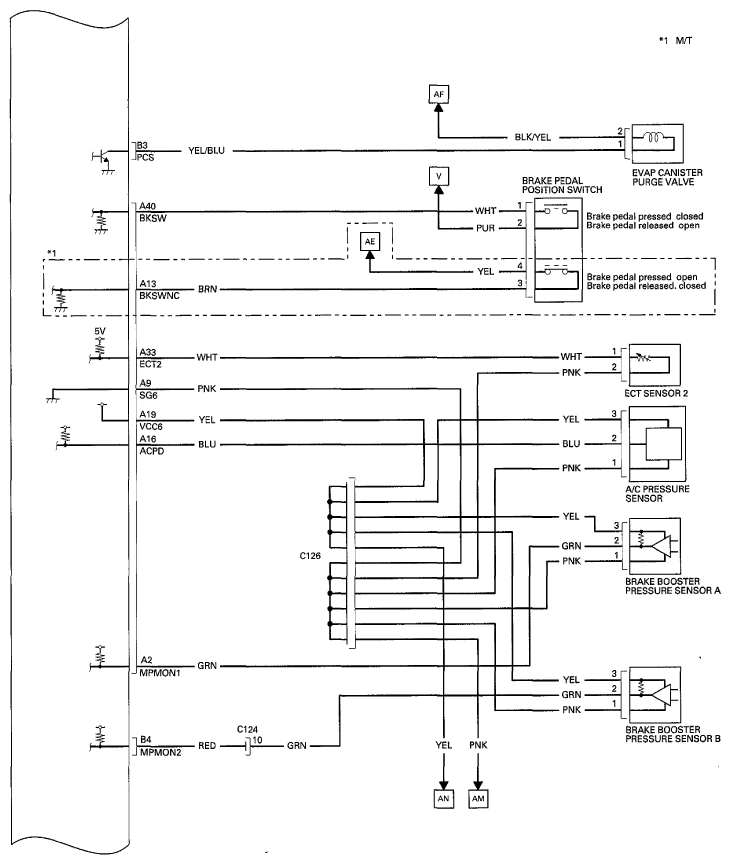

Fig 7: ECM/PCM Circuit Diagram (7 Of 15)

G06949737

Courtesy of AMERICAN HONDA MOTOR CO., INC.

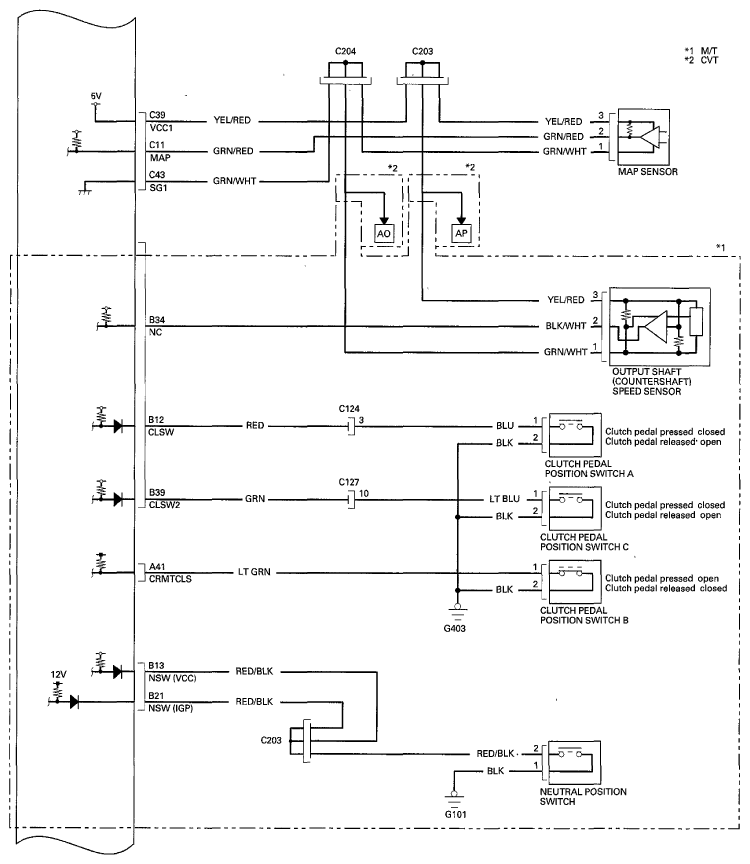

Fig 8: ECM/PCM Circuit Diagram (8 Of 15)

G06949738

Courtesy of AMERICAN HONDA MOTOR CO., INC.

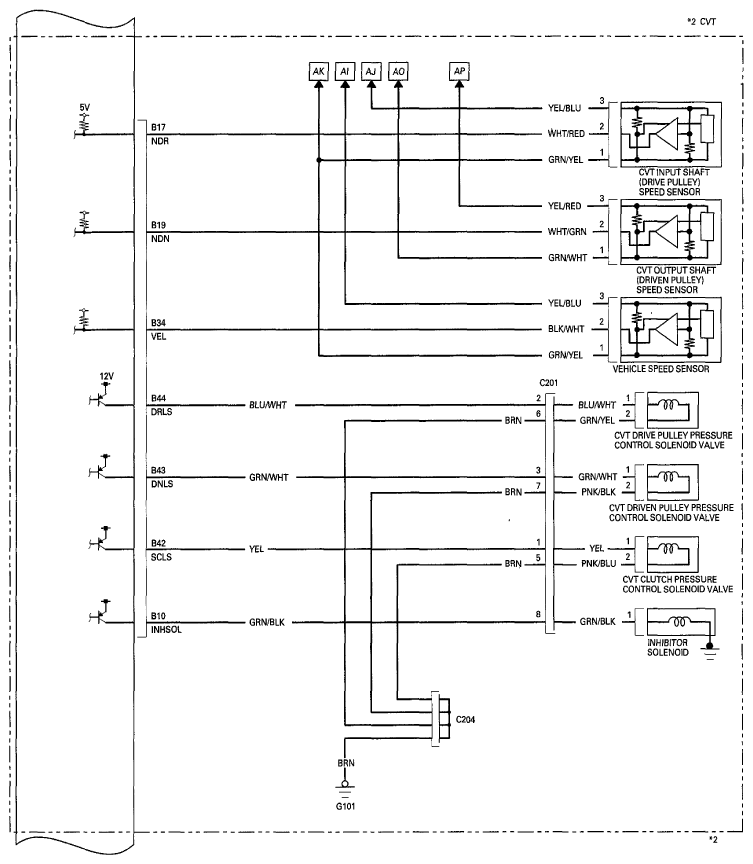

Fig 9: ECM/PCM Circuit Diagram (9 Of 15)

G06949739

Courtesy of AMERICAN HONDA MOTOR CO., INC.

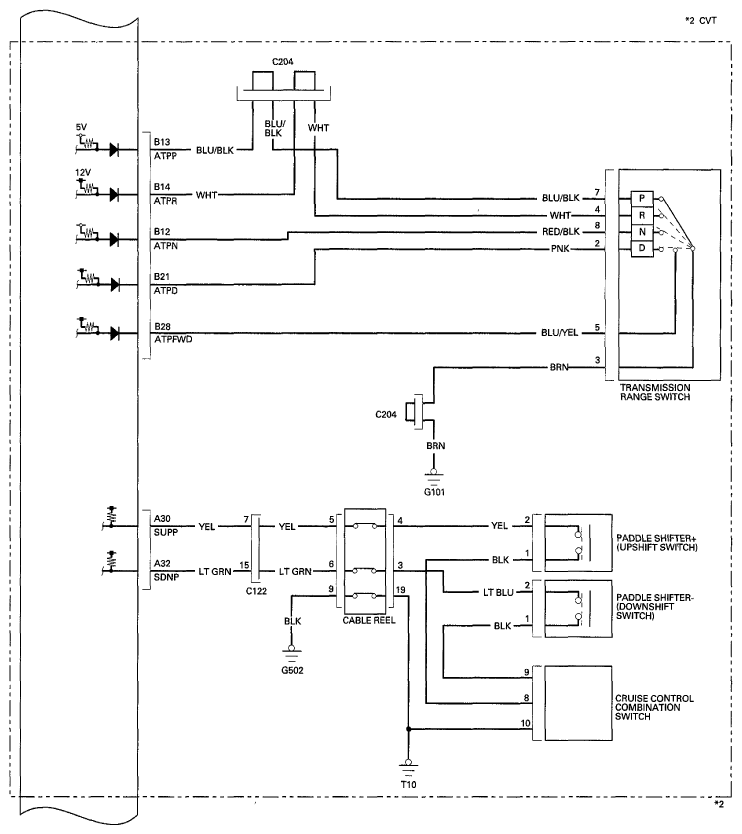

Fig 10: ECM/PCM Circuit Diagram (10 Of 15)

G06949740

Courtesy of AMERICAN HONDA MOTOR CO., INC.

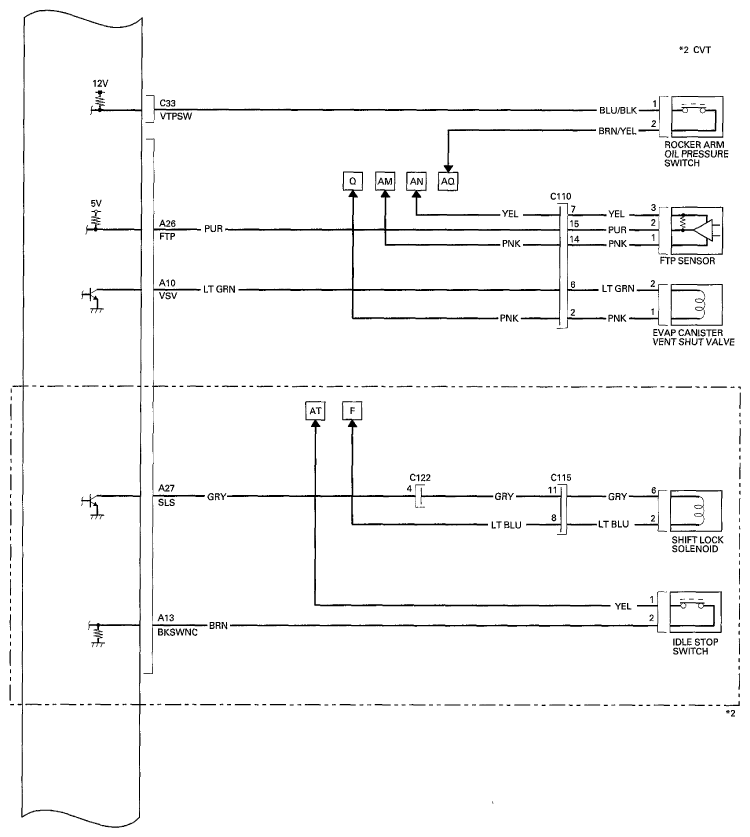

Fig 11: ECM/PCM Circuit Diagram (11 Of 15)

G06949741

Courtesy of AMERICAN HONDA MOTOR CO., INC.

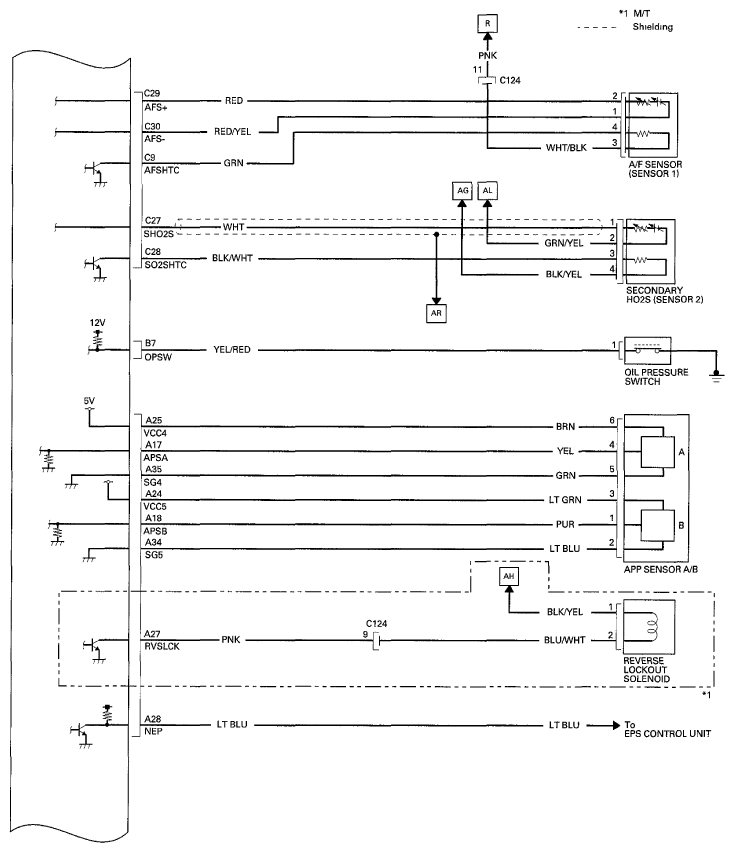

Fig 12: ECM/PCM Circuit Diagram (12 Of 15)

G06949742

Courtesy of AMERICAN HONDA MOTOR CO., INC.

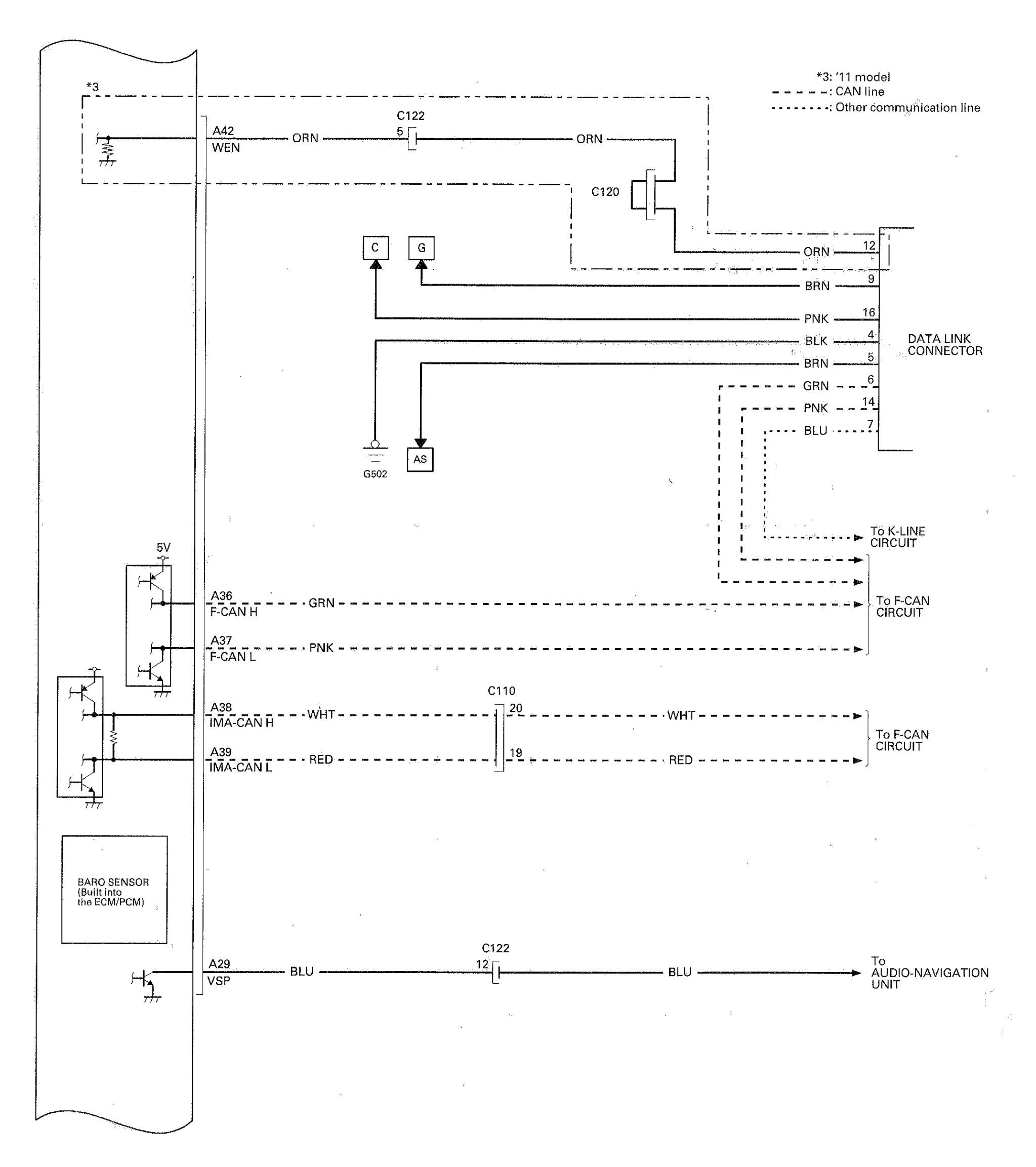

Fig 13: ECM/PCM Circuit Diagram (13 Of 15)

G00514301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

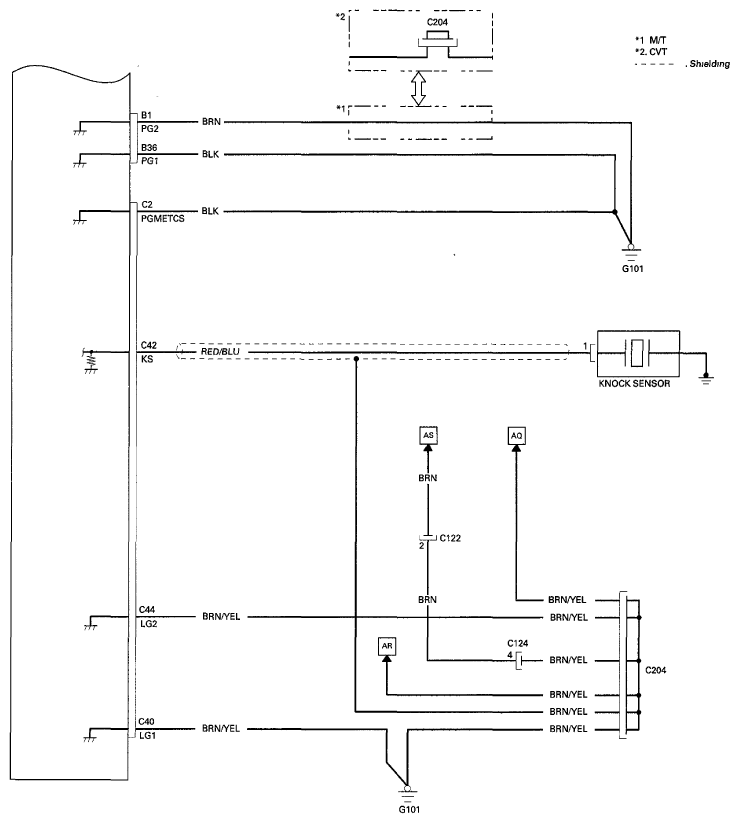

Fig 14: ECM/PCM Circuit Diagram (14 Of 15)

G06949744

Courtesy of AMERICAN HONDA MOTOR CO., INC.

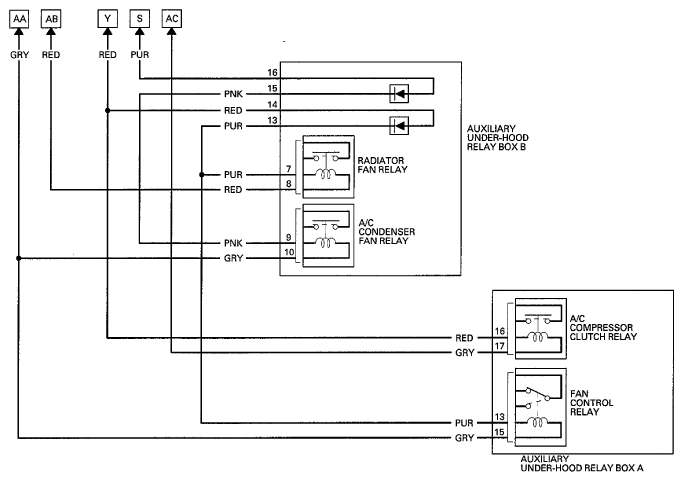

Fig 15: ECM/PCM Circuit Diagram (15 Of 15)

G06949745

Courtesy of AMERICAN HONDA MOTOR CO., INC.
