Throttle Body

The throttle body is a single-barrel side draft type. To prevent icing of the throttle plate, the lower portion of the throttle valve is heated by engine coolant from the cylinder head.

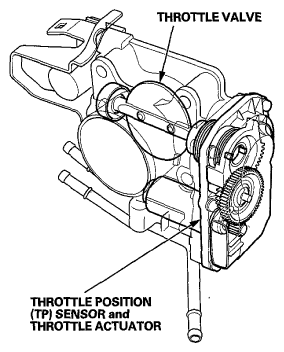

Fig 1: Identifying Throttle Valve And Throttle Position Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
